ESD Control PVC Floor Tile

Q: What is the difference between 'Conductive' and 'Static Dissipative' tiles?

The difference is electrical resistance. Conductive tiles (10⁴-10⁶ Ω) allow charges to flow to the ground quickly and are used in high-sensitivity areas like explosive environments. Static dissipative tiles (10⁶-10⁹ Ω) dissipate charges at a slower, safer rate and are the standard choice for most cleanrooms and electronics manufacturing facilities.

Q: How fast does this tile dissipate a static charge?

The static decay time is ≤2 seconds, as measured by the WJ2146-2016 standard. This ensures that any static charge generated by personnel walking or equipment operation is rapidly neutralized before it can damage sensitive electronic components.

Q: Can these PVC tiles be installed on raised access floors?

Yes. The ESD Control PVC Floor Tile is highly suitable for access flooring. Due to its durable PVC composition, it can be easily perforated for airflow without risk of rough edges, cracking, or breaking. It provides a clean, professional finish for data center raised floors.

Protect your sensitive operations with the ESD Control PVC Floor Tile from Huahong. Designed for cleanrooms, electronics manufacturing, and healthcare facilities, this high-performance tile offers permanent static dissipation (10⁴-10⁹ Ω) and rapid static decay (≤2 seconds). Manufactured with uniformly distributed conductive materials, it ensures consistent performance and excellent wear resistance. Available in 600×600mm and 610×610mm sizes with thicknesses up to 3.0mm, and certified for fire safety (V-0, B1).

Send Inquiry

Rating: 5.0

(Rating Count: 1)

Product Description

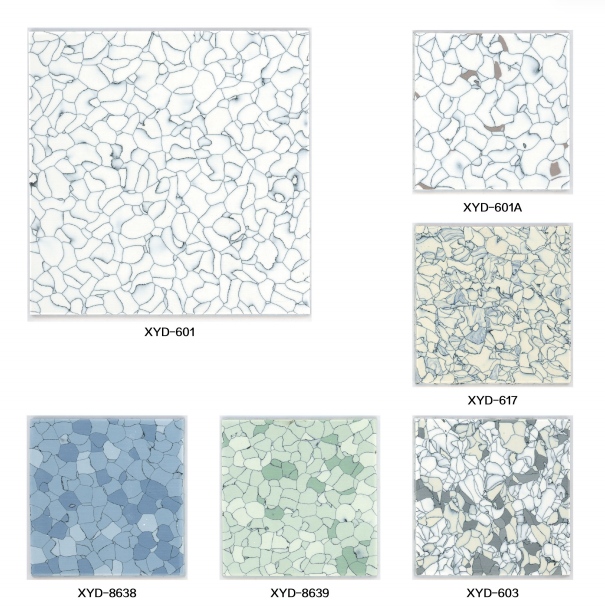

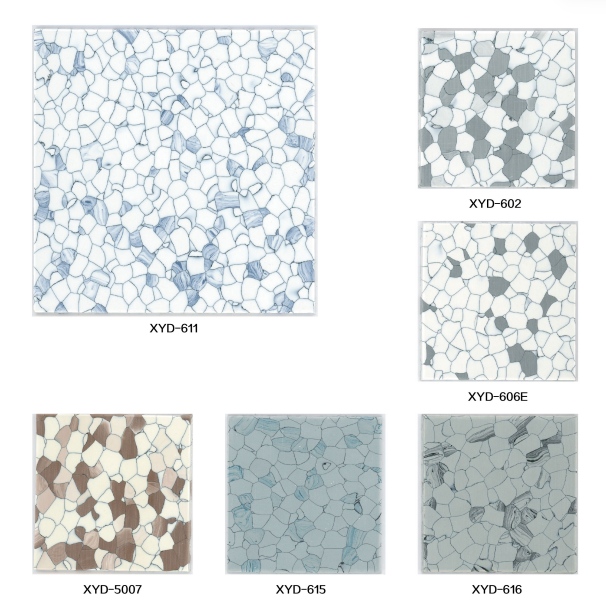

ESD Control PVC Floor Tile
Permanent ESD Protection for Cleanrooms & Electronics

Static electricity can generate thousands of volts in everyday environments, posing a fatal hazard to sensitive electronic equipment. Our ESD Control PVC Floor Tiles are engineered to actively prevent static generation and safely dissipate charges to the ground. With uniformly distributed conductive materials throughout the entire tile, it delivers permanent, reliable conductivity for high-tech facilities.

Electrical Resistance
10⁴ – 10⁹ Ω

Static Decay
≤ 2 Seconds

Fire Rating
V-0, B₁

Applications Across Critical Environments

Clean Rooms (Up to Class 10)

Suitable for strict cleanroom maintenance techniques. Ideal for semiconductors, microelectronics, optics, aerospace, pharmaceuticals, and biotechnology.

Electronics Manufacturing & Test Areas

Permanently installed material that protects sensitive electronic devices, assemblies, and products from personnel-generated electrostatic discharge.

Access Flooring & Data Centers

Ideal for raised access floors. The tile can be easily perforated for airflow without rough edges or cracking. Protects computer terminals, communications equipment, and process control installations.

Healthcare Environments

Helps control involuntary personnel movement caused by electrostatic discharge and prevents hazardous static discharge directly into patients or flammable anesthetics.

Technical Specifications

Property	Specification
Size	600 × 600 mm / 610 × 610 mm
Thickness	2.0 / 2.5 / 3.0 mm
Electrical Resistance	EC: 1.0×10⁴ – 1.0×10⁶ Ω SD: 1.0×10⁶ – 1.0×10⁹ Ω
Static Decay	≤ 2 Seconds
Fire Resistance	V-0, B₁ (B-S1, t0), Class I, Bt-S1
Wear Resistance	≤ 0.02g/cm²
Dimensional Stability	≤ 0.25%
Slip Resistance (Wet)	R9
TVOC After 28 Days	A+ (ISO 16000-6)

Installation & Maintenance Guidelines

Installation Requirements

Subfloor must be level, smooth, and free of cracks.
Residual humidity under 2.5% (CM test).
Room and materials temperature ≥18°C for 24h prior.
Must use qualified conductive glue (<10⁵ Ω).

Care & Maintenance

Machine-scrub with neutral detergent.
Remove severe stains with a floor cleaning machine.
Rinse with clear water after scrubbing.
Periodically apply conductive wax if necessary.

Integration & Related Solutions

Our ESD Control PVC Floor Tiles are the perfect surfacing solution for Calcium Sulfate Anti-static Floor and All Steel Anti-static Activity Floor panels. For cleanroom environments requiring a highly transparent finish, you can also explore our Anti-static PVC Veneer. If your project requires a carbon-free option to avoid dark smudges on light floors, the Carbon-free Anti-static Veneer is an excellent alternative.

【ESD Control PVC Floor Tile】FAQ

Q: What is the difference between "Conductive" and "Static Dissipative" tiles?

A: The difference is electrical resistance. Conductive tiles (10⁴-10⁶ Ω) allow charges to flow to the ground quickly and are used in high-sensitivity areas like explosive environments. Static dissipative tiles (10⁶-10⁹ Ω) dissipate charges at a slower, safer rate and are the standard choice for most cleanrooms and electronics manufacturing facilities.

Q: How fast does this tile dissipate a static charge?

A: The static decay time is ≤2 seconds, as measured by the WJ2146-2016 standard. This ensures that any static charge generated by personnel walking or equipment operation is rapidly neutralized before it can damage sensitive electronic components.

Q: Can these PVC tiles be installed on raised access floors?

A: Yes. The ESD Control PVC Floor Tile is highly suitable for access flooring. Due to its durable PVC composition, it can be easily perforated for airflow without risk of rough edges, cracking, or breaking. It provides a clean, professional finish for data center raised floors.
