Anti-static Floor

Anti-static Floor | All-Steel Cement-Filled ESD Protection

Static electricity silently damages servers, circuit boards, and control systems. The Anti-static Floor from Huahong Floor provides permanent, reliable protection. Engineered with premium all-steel construction and pure cement fill, this flooring system delivers superior load capacity, outstanding static control, and a professional finish.

What Is an Anti-static Floor?

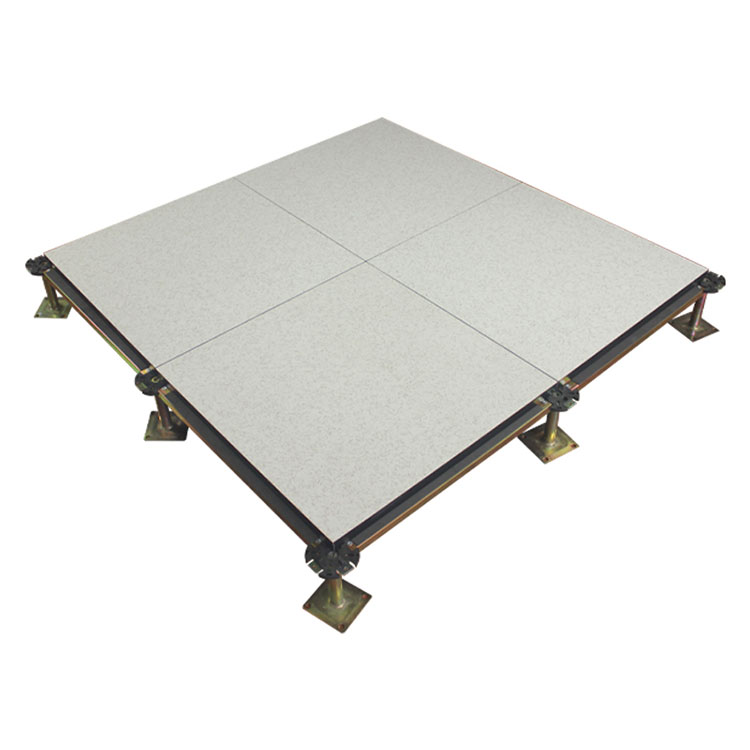

An Anti-static Floor is a specialized raised access floor designed to dissipate static charge safely to ground. Unlike ordinary floors that allow static buildup, anti-static floors maintain controlled electrical resistance between the walking surface and the building ground.

How Anti-static Floors Work

- Static charge flows from people or equipment into the floor surface

- The conductive metal shell carries charge to grounded pedestals

- Charge disperses safely into the building ground system

- No static buildup, no sudden discharge, no equipment damage

Critical Electrical Specification

Surface resistivity must remain between 1×10⁶ Ω and 1×10⁹ Ω. Below this range creates shock hazards. Above allows static accumulation. The Huahong Anti-static Floor stays precisely within this safe zone for the life of the product.

Construction – Premium All-Steel Design

Huahong Floor manufactures Anti-static Floor panels using high-quality alloy cold-rolled steel plate from Baosteel, a certified premium steel source.

Panel Composition

Manufacturing Process

1. Steel selection – Baosteel alloy cold-rolled steel plate

2. Stretching – Panels formed under precision dies

3. Spot welding – Secure joints after stretching

4. Phosphating – Chemical treatment for paint adhesion

5. Electrostatic spraying – Even, durable coating

6. Cement filling – Pure cement poured into die-cast metal shell

7. Surface application – HPL or PVC bonded under high temperature and pressure

8. Edge finishing – Clean cut, no black edge

Why All-Steel Construction Matters

- The metal shell provides inherent conductivity – no coatings to wear off

- Cement fill adds mass and prevents hollow sounds

- Spot welding ensures structural integrity

- No wood or calcium sulfate – no moisture damage or rot

Technical Specifications – Anti-static Floor

All Anti-static Floor panels comply with GB/T 36340-2018 and SJ/T 10796-2001.

Load Capacity Models (600×600×35mm)

Performance Advantages

- 30% higher load capacity than other floors of the same specification

- Thickened steel plates for super strong bearing

- Scientific mechanical structure optimizes weight-to-strength ratio

Anti-static Electrical Properties

Surface Options

Where to Install Anti-static Floor

Primary Applications

- Data centers and server rooms

- Computer and telecommunication rooms

- Command and control centers

- Financial trading floors

- Electronics manufacturing lines

- Clean rooms and laboratories

- Hospital equipment rooms

- Smart office buildings

Who Needs This Product

Core Advantages – Huahong Floor Anti-static System

1. Outstanding Anti-static Performance

- Metal shell has very high natural conductivity

- No coatings to wear off or reapply

- Consistent resistivity throughout product life

- Protects sensitive electronics from ESD damage

2. Superior Load Capacity – 30% Higher

- Scientific mechanical structure

- Thickened steel plates

- 30% stronger than same-spec competitors

- No sagging or deformation under heavy racks

3. High Wear Resistance – No Breakage

- Thick HPL wear-resistant veneer

- Thick balance paper treatment

- Completely solves breakage problems

- Resists rolling chair and cart damage

4. Professional, High-End Appearance

- No black edge around panels

- Clean, uniform gaps

- Available with HPL or PVC surfaces

- Suitable for customer-facing data centers and executive spaces

5. Permanent Construction

- Premium Baosteel cold-rolled steel

- Spot-welded after stretching

- Die-cast metal shell with pure cement fill

- No moisture damage, no rot, no corrosion

6. Complete Cable Access

- Raised design creates underfloor void

- Run power, data, and cooling lines freely

- Reconfigure without construction dust

7. Easy Maintenance

- Individual panels lift with suction tool

- Replace damaged panels instantly

- No special tools or training

【Anti-static Floor】 FAQ

FAQ 1 – What makes Huahong all-steel anti-static floor stronger than competitors?

Answer: The Huahong Anti-static Floor delivers 30% higher load capacity than other floors of the same specification. This comes from three design features. First, the scientific mechanical structure optimizes how weight transfers from the top surface through the steel shell to the pedestals. Second, thickened steel plates provide more material where stress is highest. Third, the die-cast metal shell with pure cement fill creates a rigid, monolithic panel. Many competitors use thinner steel or lower-density fills to reduce cost. Huahong prioritizes performance. For data centers with heavy server racks or UPS battery rooms, this extra strength means no sagging, no deformation, and longer service life.

FAQ 2 – Does the anti-static property wear off or require maintenance?

Answer: No. The Huahong Anti-static Floor maintains its electrical properties permanently. Here is why. The metal shell is made from conductive steel – this property never changes. The HPL surface contains static-dissipative materials throughout its entire thickness, not just as a surface coating. Even if the HPL gets scratched, the exposed material remains anti-static. Competing floors often use sprayed-on conductive coatings that wear off in 1-3 years, requiring expensive respraying. Huahong uses a permanent structure. No waxing, no special cleaners, no reapplication. One installation delivers static protection for 15+ years.

FAQ 3 – What is the difference between HPL and PVC surfaces for anti-static floors?

Answer: Both options provide anti-static protection, but they serve different needs. HPL (High-Pressure Laminate) is the premium choice. It features a thick wear-resistant veneer with balance paper treatment that completely solves breakage problems. HPL is also fire-resistant and handles heavy foot traffic, rolling chairs, and equipment moves. It delivers a high-end, professional appearance. PVC board is a bare board without veneer. It is more economical but less wear-resistant than HPL. Choose HPL for data centers, server rooms, and any customer-facing space where appearance and durability matter. Choose PVC for budget-conscious projects or temporary installations. Both are available with straight or folded edges.

FAQ 4 – What does “no black edge” mean and why does it matter?

Answer: Many anti-static floors have a visible black conductive strip around the panel perimeter. This strip is necessary for grounding continuity, but it creates a dark grid pattern across the finished floor. The Huahong Anti-static Floor achieves the same grounding performance without a black edge. The result is a clean, uniform appearance with no visible grid lines. For data centers with glass floors, raised access floors in executive areas, or any space where aesthetics matter, no black edge delivers a high-end, professional look. This is one reason Huahong is considered a premium product among all-steel floors.

FAQ 5 – Is the cement fill truly pure and fully filled?

Answer: Yes. Huahong Floor uses standard pure cement for the inner cavity fill, not mixed aggregates or lower-density substitutes. The cement is poured into the die-cast metal shell, completely filling the cavity. This provides three benefits. First, mass stability – the panel feels solid underfoot with no hollow sounds. Second, load transfer – the cement distributes point loads across the steel shell. Third, fire safety – pure cement is non-combustible. Some competitors use partial fills or lower-density materials to save cost. Huahong fills completely with pure cement for long-term reliability.

FAQ 6 – What warranty and support does Huahong Floor provide?

Answer: Huahong Floor provides a 5-year structural warranty on all Anti-static Floor products. Coverage includes the steel shell integrity, cement fill quality, HPL bonding, and load performance. Anti-static properties are guaranteed to stay within 1×10⁶–1×10⁹ Ω for the warranty period. Support includes technical documentation (installation guides, load charts, grounding layouts), remote troubleshooting by call or email, replacement panels for verified defects, and optional on-site inspection for large projects. After warranty, Huahong continues to provide replacement panels at cost and technical support. Many Huahong floors remain in service for 15+ years.

Installation Overview

Basic Steps

1. Clean and prepare the subfloor

2. Mark pedestal positions on grid layout

3. Set and adjust pedestals to design height

4. Install stringers for lateral stability

5. Begin panel placement from a reference corner

6. Check flatness with 2m level

7. Install edge trim and access ramps

Tools Required

- Laser level or rotating laser

- Suction cup panel lifter

- Rubber mallet

- Torque wrench

- Multimeter for ground continuity testing

Maintenance Guidelines

Daily Care

- Vacuum or dry mop the HPL or PVC surface

- Clean spills immediately with mild soap and damp cloth

- Do not use wax, polish, or anti-static sprays – not needed

Periodic Checks (Every 6 Months)

- Test surface resistivity with megohmmeter

- Inspect panel edges for damage

- Verify pedestal stability

- Check ground continuity

Panel Replacement

- Lift damaged panel with suction cup

- Lower new panel into same opening

- No tools required

- No downtime for surrounding area

Why Choose Huahong Floor

Manufacturing Excellence

Premium Positioning

The Huahong Anti-static Floor is a high-end product among all-steel floors. Every detail – from Baosteel steel to pure cement fill to no-black-edge finish – reflects a commitment to quality. This is not a budget floor. It is built for data centers, server rooms, and technical facilities that demand the best.

Complete Project Support

- Site measurement and load analysis

- System design and pedestal layout

- Material supply with delivery coordination

- Professional installation (optional)

- Post-installation testing and documentation

Ordering Information

Standard Package Includes

- Anti-static Floor panels by selected model (FS662 to FS2500)

- Adjustable pedestals (zinc-plated steel)

- Stringers and fasteners

- Installation guide and load certificate

- Resistivity test report

Information Needed for Quote

- Room dimensions (length × width)

- Desired finished floor height

- Equipment type and maximum point load

- Surface preference (HPL or PVC)

- Edge preference (straight or folded)

Summary

The Anti-static Floor from Huahong Floor combines premium Baosteel steel, pure cement fill, and scientific mechanical structure to deliver 30% higher load capacity than standard floors. The metal shell provides outstanding, permanent anti-static performance. Thick HPL veneer with balance paper treatment completely solves breakage problems. No black edge ensures a clean, high-end appearance. Designed for data centers, server rooms, labs, and electronics facilities. Backed by 5-year warranty and full project support. Choose Huahong for permanent ESD protection, superior strength, and professional finish.
