Steel Cementitious Raised Floor

Looking for a reliable raised floor solution? 【Huahong Floor】 presents the 【Steel Cementitious Raised Floor】. Crafted from SPCC steel and foamed cement, it delivers exceptional load capacity, static control, fire and moisture resistance. Ideal for data centers, labs, and smart offices, it prevents floor sagging, eliminates static risks, and organizes messy cables neatly. Unlike ordinary floors, our dual-brand quality control ensures superior flatness and durability. Enjoy turnkey service and solid warranty. Choose stable, cost-effective performance today.

Send Inquiry

Product Description

Steel Cementitious Raised Floor | Full Technical Specifications & Selection Guide

A Steel Cementitious Raised Floor is the backbone of any professional data center, server room, or control center. Huahong Floor delivers precision-engineered access floors that combine SPCC steel shells with high-density foamed cement cores. Below are the complete technical parameters, model comparisons, and practical answers to buyer questions.

Complete Technical Parameters – Steel Cementitious Raised Floor

All panels measure 600mm × 600mm × 35mm and comply with GB/T 36340-2018 and SJ/T 10796-2001.

Load Performance by Model

Model	International Ref	Uniform Load	Concentrated Load	Rolling Load	Impact Load	Ultimate Load
FS662	HDG600 35QD	17.78 KN/m²	3.56 KN (363 KG)	2.94 KN	100 LB / 45 KG	11.25 KN
FS800	HDG600 35QD	22.22 KN/m²	4.45 KN (454 KG)	3.56 KN	150 LB / 68 KG	14.50 KN
FS1250	HDG600 35ZD	27.78 KN/m²	5.56 KN (567 KG)	4.45 KN	150 LB / 68 KG	18.36 KN
FS1500	HDG600 35ZD	33.34 KN/m²	6.68 KN (680 KG)	5.56 KN	175 LB / 68 KG	22.17 KN
FS2000	HDG600 35ZD	44.45 KN/m²	8.89 KN (907 KG)	6.68 KN	175 LB / 79 KG	29.42 KN
FS2500	HDG600 35ZD	57.79 KN/m²	11.11 KN (1134 KG)	8.89 KN	200 LB / 91 KG	37.34 KN

Reference Standard – SJ/T 10796

Standard Model	Size	Uniform Load	Concentrated Load	Rolling Load	Impact Load	Ultimate Load
SJ/T 10796	600×600×35mm	14.71 KN/m²	2.94 KN (300 KG)	2.45 KN	100 LB / 45 KG	8.85 KN

All Huahong Floor models exceed the baseline national standard.

Load Type Definitions

- Uniform Load – Evenly distributed weight across the full panel surface.

- Concentrated Load – Weight applied at the panel center (simulates server feet or rack legs).

- Rolling Load – Weight of wheeled equipment moving across the floor.

- Impact Load – Sudden force from dropped objects or installation shocks.

- Ultimate Load – Maximum force before structural failure (safety margin included).

How to Select the Right Steel Cementitious Raised Floor Model

Model Recommendation Guide

Application Environment	Recommended Model	Why
General office underfloor cabling	FS662	Light load, easy cable access
Server room with partial racks	FS800	Standard IT equipment weight
Small data center, lab	FS1250	Higher point load safety
Mid-size data center, UPS rooms	FS1500	Heavy battery and rack support
Large enterprise data center	FS2000	High-density rack deployment
Mainframe, heavy industrial control	FS2500	Extreme concentrated loads

Load Capacity Comparison Chart (Visual Guide)

FS662 < FS800 < FS1250 < FS1500 < FS2000 < FS2500

Each step up adds approximately **20-30%** more concentrated load capacity.

Construction & Material Specifications

Panel Composition

Component	Material / Specification
Top steel plate	SPCC grade, impact-welded
Bottom steel plate	SPCC grade, impact-welded
Core fill	High-density foamed cement

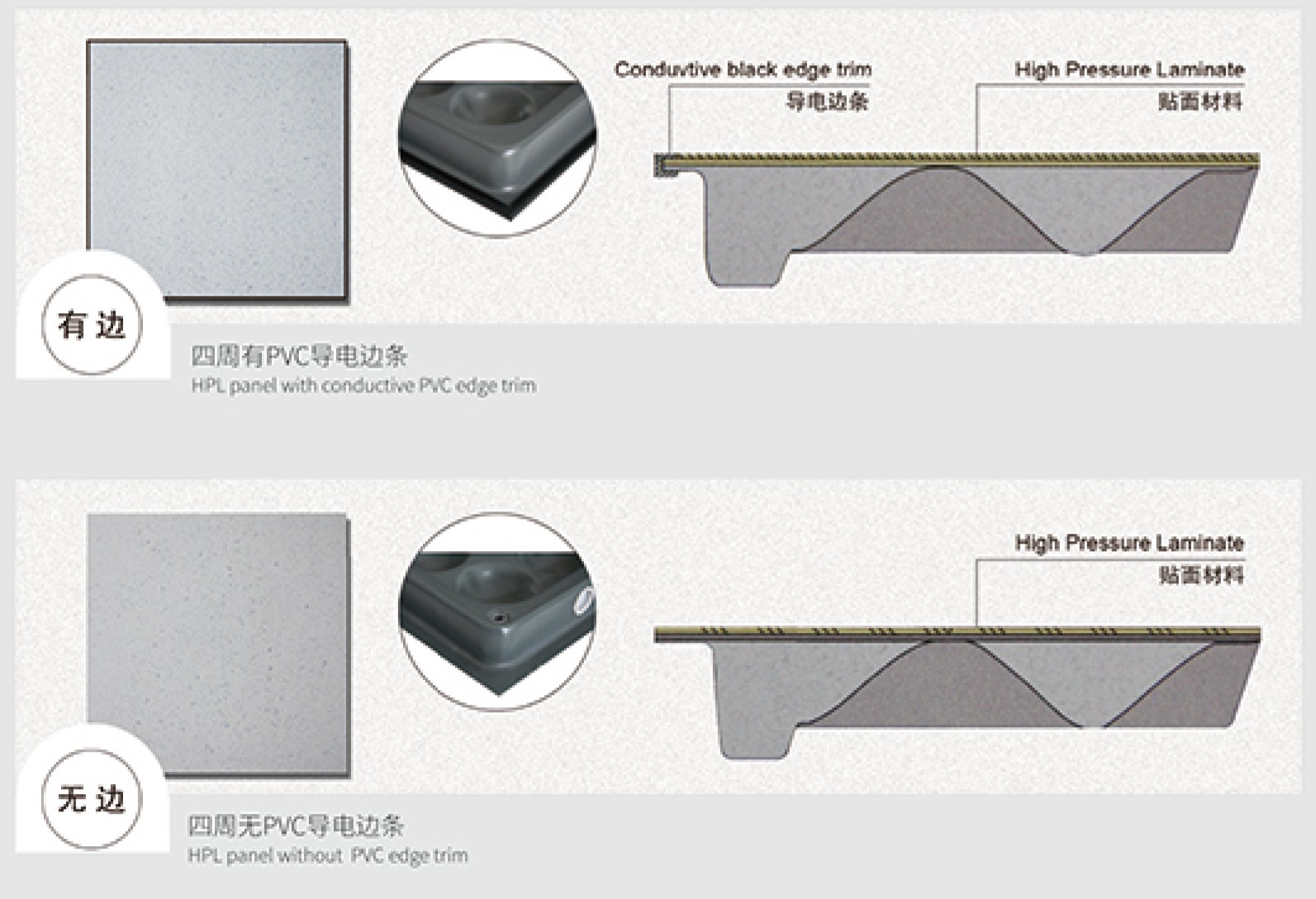

Edge finish	PVC conductive strip or non-PVC type
Panel thickness	35mm
Panel size	600mm × 600mm
Panel weight	14–16 kg depending on model

Environmental & Safety Properties

Property	Performance
Fire rating	Class A (non-combustible)
Surface resistivity	1×10⁶ – 1×10⁹ Ω (antistatic)
Moisture resistance	No swelling or corrosion
Flatness tolerance	≤ 0.5 mm over 600mm
Service life	15+ years under normal use

【Steel Cementitious Raised Floor】 FAQ – Detailed Answers

FAQ 1 – What is the difference between FS662 and FS2500 models?

Answer: The difference is load capacity and internal steel thickness. FS662 provides 3.56 KN concentrated load (363 KG), suitable for office cabling and light server rooms. FS2500 provides 11.11 KN concentrated load (1134 KG) – over three times stronger. FS2500 uses thicker SPCC steel plates and higher-density cement fill. All models share the same 600×600×35mm outer dimensions and panel interchangeability. Choose FS662 for general use. Choose FS2500 for mainframe computers, heavy UPS battery rooms, or industrial control floors where heavy equipment rolls or sits.

FAQ 2 – How does the Steel Cementitious Raised Floor compare to all-steel or wood-core panels?

Answer: Compared to all-steel hollow panels, the Steel Cementitious Raised Floor feels solid underfoot with no drumming sound. The cement core adds mass, reduces vibration, and provides true Class A fire resistance. Compared to wood-core panels, cement does not absorb moisture, swell, or rot. Wood-core panels lose load capacity in humid environments. Cement-core panels maintain full strength even at 90% relative humidity. The steel-cement combination also offers better creep resistance – no gradual sagging under permanent rack loads. For long-term stability in data centers, steel cementitious is the preferred choice.

FAQ 3 – Can I mix different load-rated panels in the same room?

Answer: Yes, and this is common practice. Use higher-rated panels (FS1500 or FS2000) under heavy server racks, UPS units, or battery cabinets. Use lower-rated panels (FS662 or FS800) in walkway areas and light equipment zones. All Steel Cementitious Raised Floor panels share identical 600×600×35mm dimensions and pedestal compatibility. Mark the high-load zones on your floor plan. The installation method remains the same across all models. This mixed approach saves cost while providing strength exactly where needed.

Installation & Maintenance Guidelines

Installation Steps

- Set adjustable pedestals on subfloor at 600mm centers.

- Install stringers for seismic stability if required.

- Place panels starting from reference corner.

- Check flatness every 2-3 panels.

- Install PVC conductive strips for continuous grounding.

Daily Maintenance

- Use standard suction cup lifter for panel removal.

- Vacuum surface regularly to maintain antistatic performance.

- Replace damaged panels immediately – fully interchangeable.

Why Huahong Floor Delivers Better Value

Quality Control Difference

Aspect	Huahong Floor	Typical Market
Steel gauge	Consistent, verified	May vary by batch
Cement density	High-density foamed fill	Lower density possible
Flatness	≤0.5mm tolerance	Looser tolerance
Edge finish	Precision cut	Rough or uneven
Standard compliance	GB/T 36340 + SJ/T 10796	May meet only minimum

Dual Brand Assurance

Both Huahong and Ouli brands follow identical production controls. Every panel undergoes impact-weld inspection, cement fill verification, and flatness testing before packing.

Ordering & Support Information

What You Receive

- Steel Cementitious Raised Floor panels by model

- Adjustable pedestals and stringers

- PVC conductive strips (if ordered)

- Installation guide and load charts

After-Sales Coverage

- 5-year warranty against manufacturing defects

- Technical support via email and phone

- Replacement panels for verified claims

Select the right Steel Cementitious Raised Floor model based on your actual equipment weight. Huahong Floor provides full documentation, consistent quality, and practical load ratings you can trust.
