Perforated Panel | Precision Airflow for Data Center Cooling

High-density servers generate intense heat. Without proper airflow, hot spots develop, equipment throttles, and reliability suffers. The Perforated Panel from Huahong Floor delivers the solution. Manufactured from thickened cold-rolled steel with uniformly distributed perforations, this panel provides efficient ventilation, stable load capacity, and anti-static protection. Designed specifically for cold aisle/hot aisle containment systems, it is the preferred choice for precision computer room ventilation flooring.

What Is a Perforated Panel?

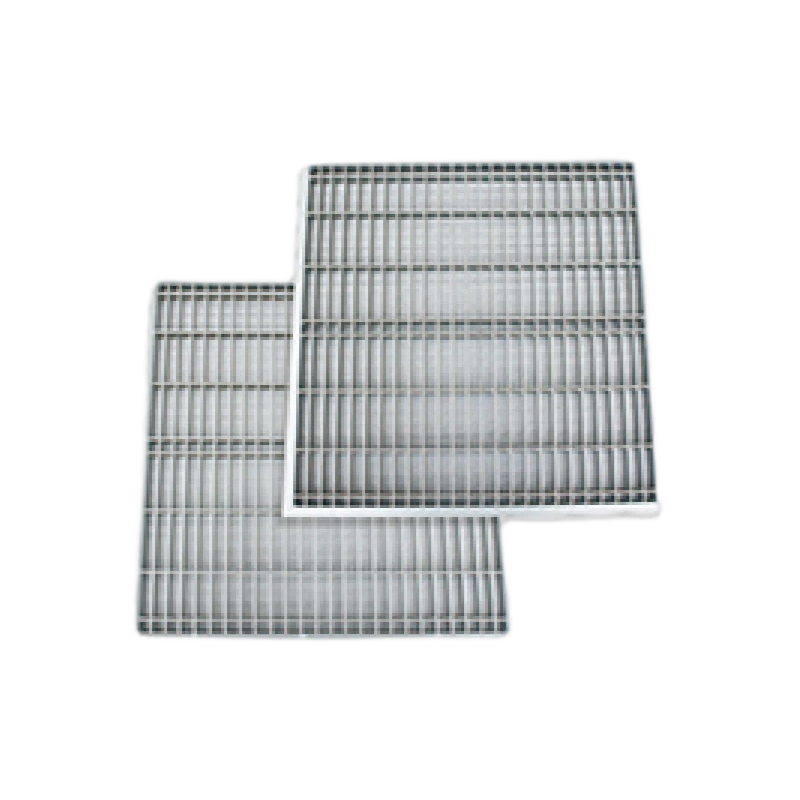

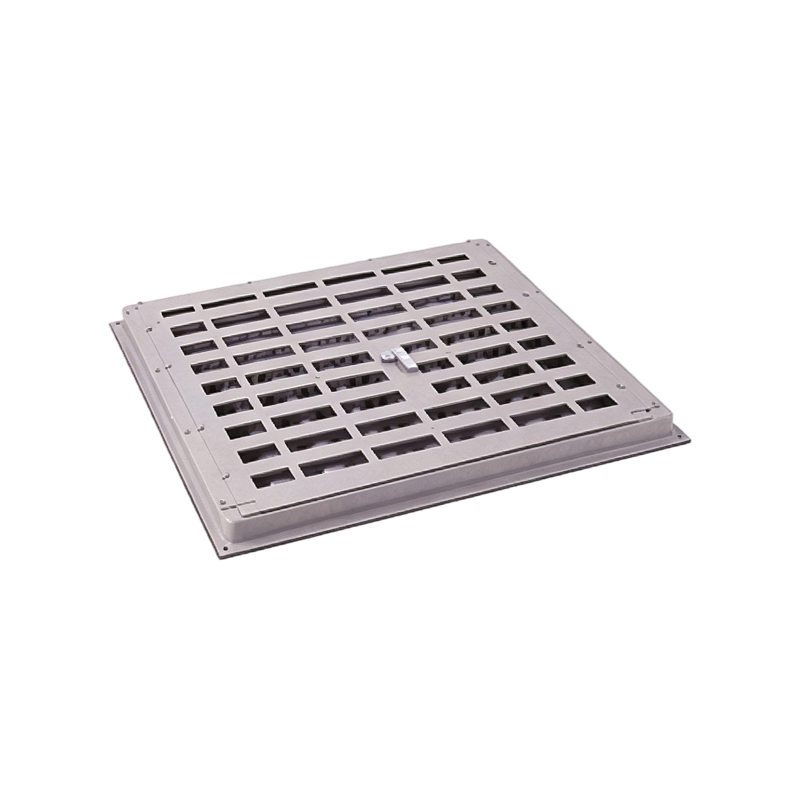

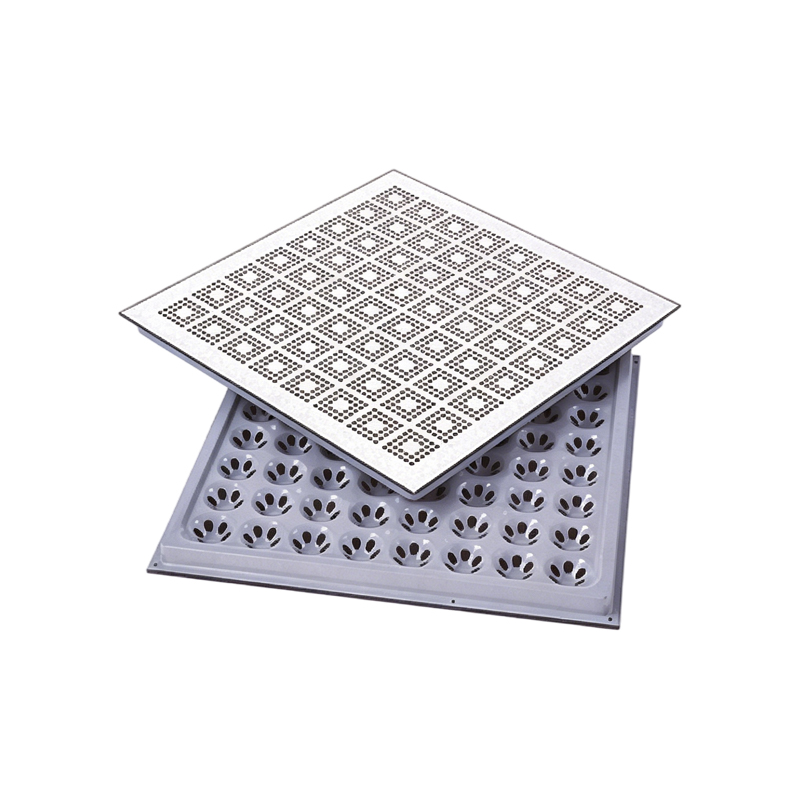

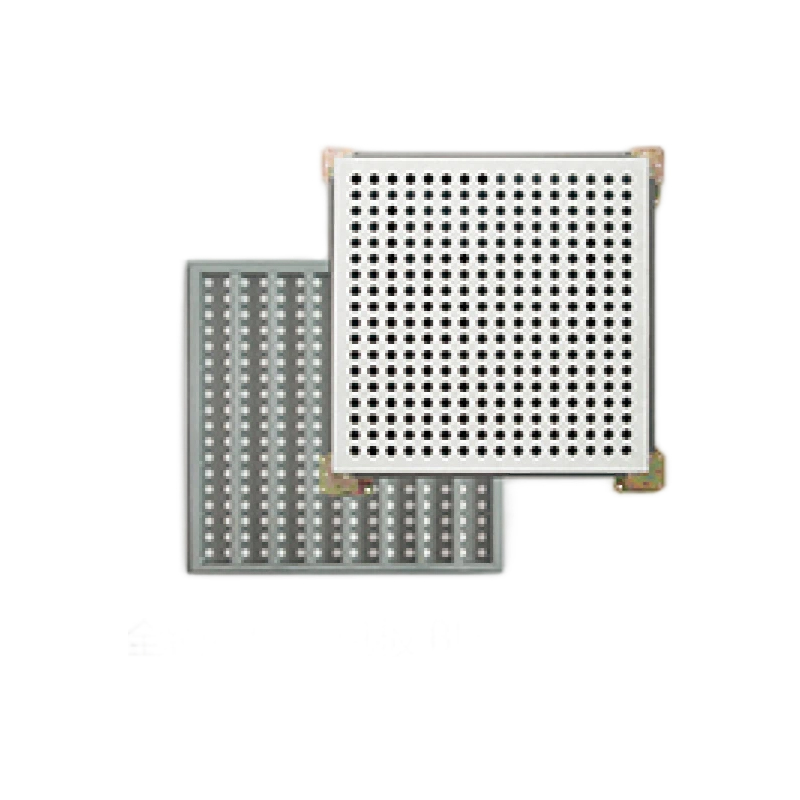

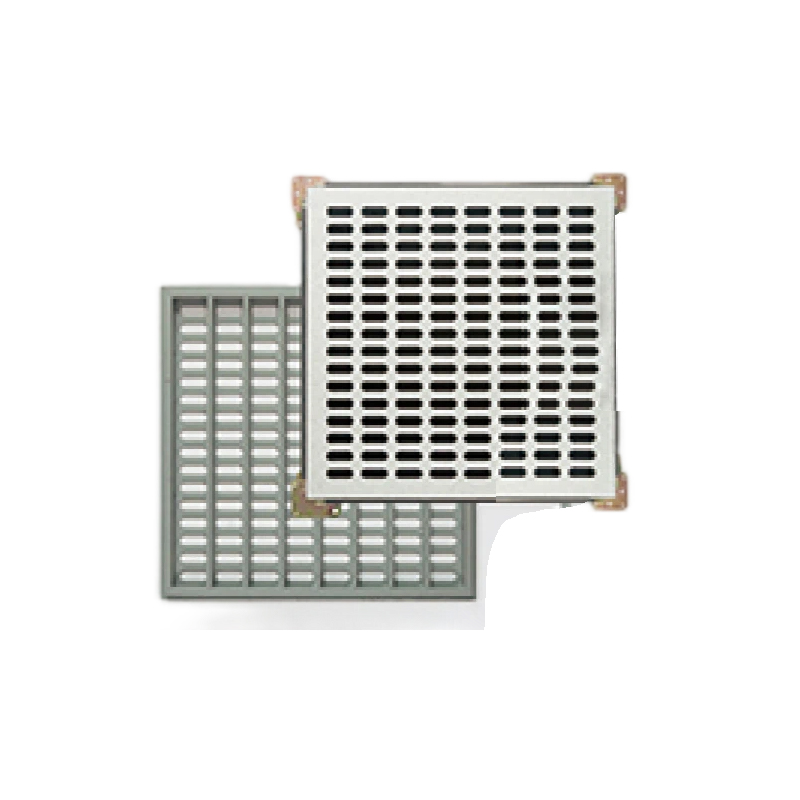

A Perforated Panel is a modular raised floor panel with evenly spaced holes across its surface. It replaces solid panels in front of server racks to deliver cooling air from the underfloor plenum directly to equipment intakes. The all-steel construction provides both ventilation and load-bearing capability.

Product Definition & Core Functions

- Definition: An all-steel raised floor panel with uniform perforation structure for ventilation

- Primary Function: Deliver cooling air to server intakes in data center cold aisles

- Additional Functions: Anti-static protection, equipment load support, underfloor cable access

Panel Construction

Manufacturing Process

- Material: Thickened cold-rolled steel plate

- Forming: One-piece stamping and forming (not welded assembly)

- Perforation: Precision punching with uniform hole distribution

- Edge finishing: No burrs, smooth for handling

- Surface treatment: Phosphating + electrostatic spraying

Dual Brand Quality Control

Both Huahong and Ouli brands follow strict production standards. Every panel undergoes perforation accuracy inspection, flatness testing, and load verification before packing.

Technical Specifications

Basic Parameters

Load Capacity Options

Ventilation Specifications

Dimensional Accuracy

- Perforation uniformity: No dead spots – even airflow distribution

- Burr-free edges: Safe for handling and installation

- Flatness tolerance: ≤ 0.5 mm over 600mm

- Panel interchangeability: Standard grid compatibility

Core Advantages of Perforated Panel

1. Efficient Ventilation for Heat Removal

- Uniform hole distribution ensures even airflow

- No dead spots or blocked ventilation zones

- Customizable ventilation rate (30%-60%)

- Designed for cold aisle/hot aisle containment

2. High Strength and Load Capacity

- Thickened cold-rolled steel construction

- One-piece stamping – no weak weld points

- Elastic deformation ≤ 2.0mm under load

- Supports servers, UPS units, and heavy equipment

3. Anti-Static and Corrosion Resistant

- Phosphating + electrostatic spraying treatment

- Surface resistivity within anti-static range

- Resists rust and corrosion

- Long service life in data center environments

4. Modular and Easy to Maintain

- Standard 600×600mm size

- Quick installation and replacement

- Easy cleaning – smooth surface prevents hole blockage

- Compatible with standard pedestal systems

5. Customizable Ventilation Rate

- 30% to 60% open area options

- Tailored to specific heat load requirements

- Prevents under-cooling or wasted airflow

- Optimizes CRAC fan efficiency

6. No Burrs – Safe and Professional

- Precision punching with deburring process

- Smooth edges for handling and foot traffic

- No sharp edges to damage cables or hands

- Professional appearance in customer-facing areas

7. Dual Brand Quality – Huahong & Ouli

- Strict production controls

- Consistent perforation accuracy

- Superior flatness and durability

- Better than ordinary products on the market

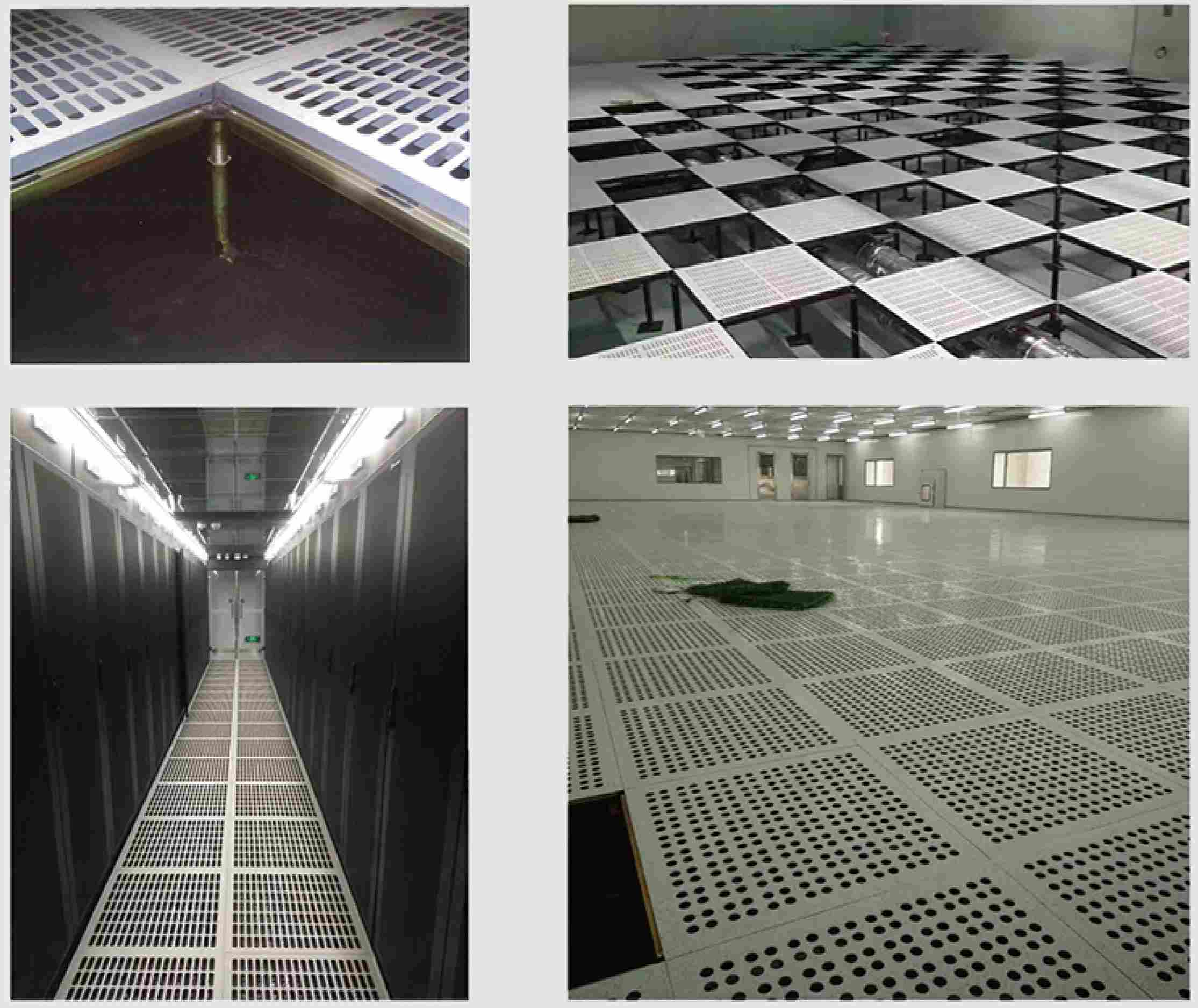

Applications for Perforated Panel

Primary Applications

- Data centers and IDC rooms

- Server rooms and computer rooms

- Cold aisle/hot aisle containment systems

- Telecommunication equipment rooms

- High-performance computing centers

- High heat density equipment spaces

- Network equipment rooms

Who Needs This Product?

Placement Strategy

- Cold aisle: Perforated panels in front of server racks

- Hot aisle: Solid panels to contain exhaust air

- Walkways: Solid or low-ventilation panels

- Under racks: Perforated panels aligned with server intakes

【Perforated Panel】 FAQ

Q1: What ventilation rate do I need for my server room?

Answer: The required ventilation rate depends on your rack heat density and underfloor air supply pressure. General guidelines: 30-40% ventilation – Low to medium heat loads (3-5kW per rack), standard server rooms with moderate cooling needs. 45-50% ventilation – Medium to high heat loads (5-8kW per rack), typical data center cold aisles. 55-60% ventilation – High heat loads (8-12kW+ per rack), high-density computing, hot aisle containment systems. Huahong Floor supports customizable ventilation rates from 30% to 60% . For new projects, perform a CFD analysis or consult with Huahong to calculate the optimal open area based on your specific CRAC flow rate, plenum depth, and rack layout. Incorrect ventilation rates cause either under-cooling (hot spots) or over-cooling (wasted energy).

Q2: Is the Perforated Panel strong enough for heavy server racks?

Answer: Yes. The Perforated Panel uses thickened cold-rolled steel with one-piece stamping forming – no weak weld points. Elastic deformation is ≤2.0mm under load. Load capacity depends on the model you select: FS662 (363 KG) – Light ventilation areas. FS800 (454 KG) – Standard server rooms. FS1250 (567 KG) – Medium density racks. FS1500 (680 KG) – High-density cabinets. FS2000 (907 KG) – Heavy equipment zones. For most standard server racks with foot loads of 200-300KG, FS800 or FS1250 models are sufficient. For heavy UPS equipment or high-density storage arrays, select FS1500 or FS2000. Unlike some competitors that reduce steel thickness to lower cost, Huahong uses full-thickness steel to ensure structural integrity even with perforations.

Q3: Do the holes get blocked with dust or debris? How do I clean the panel?

Answer: The Perforated Panel is designed for easy cleaning. The surface is smooth with electrostatically sprayed finish, which resists dust accumulation. For regular maintenance: Daily – Dry mop or vacuum the surface to remove loose dust. Weekly – Use a damp cloth or mop with mild soap and water for deeper cleaning. For blocked holes – Use a vacuum with brush attachment or compressed air from the underside to clear any debris. Do not use high-pressure water jets or abrasive cleaners – these can damage the anti-static coating. The smooth surface and burr-free hole edges prevent debris from sticking. Compared to cast or rough-surfaced perforated tiles, Huahong perforated panels are significantly easier to keep clean. For clean room environments, specify high-ventilation models with more holes to maintain airflow even with minor surface dust.

Q4: Can I customize the perforation pattern or ventilation rate?

Answer: Yes. Huahong Floor supports customizable ventilation rates from 30% to 60% . You can specify the exact open area percentage needed for your cooling design. Standard patterns include: uniform hole distribution across the entire panel, high-density perforation zones for targeted cooling, and edge-to-edge perforation for maximum airflow. For large projects, custom hole diameters and spacing patterns are available. Provide your required CFM per panel or target open area percentage, and Huahong will manufacture accordingly. This customization ensures you neither under-ventilate (causing hot spots) nor over-ventilate (wasting cold air and energy). Contact Huahong with your cooling requirements for a recommendation.

Q5: What is the difference between Huahong Perforated Panel and ordinary perforated tiles?

Answer: Five key differences distinguish Huahong Perforated Panel from ordinary products. First, steel thickness – Huahong uses thickened cold-rolled steel; many competitors reduce thickness to cut cost, sacrificing load capacity. Second, forming method – One-piece stamping and forming, no separate welding points; ordinary panels may use welded assemblies that can fail. Third, perforation quality – Precision punching with no burrs, uniform hole distribution; ordinary panels often have inconsistent holes or sharp edges. Fourth, load capacity – Huahong panels maintain higher strength despite perforations; ordinary panels deform more easily. Fifth, dual brand quality control – Huahong and Ouli brands follow strict production standards; ordinary products have inconsistent quality. For data centers where reliability and cooling efficiency matter, Huahong panels deliver longer life and better performance.

Q6: Does Huahong provide installation and after-sales support for Perforated Panels?

Answer: Yes. Huahong Floor provides comprehensive support. Installation services include: on-site measurement and layout design, professional installation by trained crews (available in many regions), system integration with existing pedestal grids, and post-installation flatness and airflow verification. For customers using their own contractors , Huahong provides detailed installation guides and remote technical support. Warranty : 5-year structural warranty covering steel integrity, perforation quality, load performance, and anti-static properties. After-sales support : Technical documentation, replacement panels for verified defects, and optional on-site inspection for large projects. Customization support : Ventilation rate customization, edge finish options (conductive strip or borderless), and load model selection. Contact Huahong with project details for a complete support proposal.

Q7: Can Perforated Panels be used with underfloor air supply systems?

Answer: Absolutely. Perforated Panels are specifically designed for underfloor air distribution (UFAD) systems common in data centers. The panel sits on adjustable pedestals above the concrete slab, creating a pressurized air plenum. The CRAC/CRAH unit pushes cold air into the plenum. Air naturally rises through the perforations in panels placed in the cold aisle. The uniform hole distribution ensures consistent airflow across the entire panel face. For best results: Ensure minimum plenum depth of 300mm (12 inches) for proper air distribution. Seal cable cutouts in solid panels to prevent air leaks. Use gasketed pedestals or edge seals to prevent air bypass. Coordinate ventilation rate with your cooling design – higher perforation panels deliver more airflow but also reduce plenum static pressure. Huahong can help calculate optimal ventilation for your specific CRAC flow rate and room layout.

Installation Guidelines

Standard Installation Steps

1. Clean subfloor and verify plenum depth (minimum 300mm)

2. Mark pedestal positions on 600×600mm grid

3. Install adjustable pedestals at design height

4. Install stringers for lateral stability (if required)

5. Place Perforated Panels in cold aisle positions

6. Place solid panels in hot aisle and walkways

7. Check flatness with 2m level

8. Install edge trim and access ramps

Placement Best Practices

- Cold aisle: Perforated panels directly in front of server rack intakes

- Hot aisle: Solid panels or very low ventilation panels

- Under racks: Align perforated panels with server intake zones

- Walkways: Low ventilation (30%) or solid panels for comfort

Tools Required

- Laser level or rotating laser

- Suction cup panel lifter

- Measuring tape

- Multimeter for grounding test (if conductive strips specified)

Comparison – Huahong Perforated Panel vs. Standard Perforated Tile

Solutions to Common Customer Concerns

Why Choose Huahong Floor Perforated Panels

Manufacturing Excellence

- Steel: Thickened cold-rolled steel plate

- Forming: One-piece stamping – no weak weld points

- Perforation: Precision punching, uniform distribution, no burrs

- Surface: Phosphating + electrostatic spraying

- Quality: Huahong and Ouli dual brand control

Performance Guarantees

- Ventilation rate: 30% to 60% as specified

- Elastic deformation: ≤ 2.0mm under load

- Flatness: ≤ 0.5mm over 600mm

- Anti-static: Meets SJ/T 10796-2001

- Load capacity: FS662 to FS2000 models available

One-Stop Service

- Ventilation rate customization

- Load model selection guidance

- System design and layout planning

- Material supply with delivery

- Professional installation (optional)

- 5-year warranty and technical support

Summary

The Perforated Panel from Huahong Floor is the precision solution for data center cooling. Thickened cold-rolled steel with one-piece stamping provides high strength and load capacity. Uniform perforations with no burrs ensure even airflow and safe handling. Customizable ventilation rate (30%-60%) matches specific heat load requirements. Anti-static treatment protects sensitive equipment. Standard 600×600mm size fits any raised floor grid. Backed by 5-year warranty, dual brand quality control (Huahong and Ouli), and full project support.

Choose Huahong Perforated Panel for efficient cooling, reliable strength, and lasting performance.
