Anti-static PVC Veneer
The Anti-static PVC Veneer from Huahong is an advanced ESD control solution designed for the most sensitive environments. Utilizing nanoscale carbon-free conductive materials, it features a fully transparent structure that preserves the original beauty of your floors while delivering permanent static dissipation (10⁶-10⁹ Ω). With super antibacterial and anti-fouling properties, plus rapid static voltage decay (≤0.4s), it is the ideal flooring choice for hospitals, electronics manufacturing, and high-tech cleanrooms.
Send Inquiry
Product Description
|
Anti-static PVC Veneer Fully Transparent · Nanoscale Conductive · Super Antibacterial |
| Nanoscale Conductive Employs nanoscale carbon-free conductive materials to ensure permanent and stable anti-static performance without compromising visual aesthetics. | Super Antibacterial Passes ISO 22196 antibacterial testing, making it highly suitable for hospitals, laboratories, and other strict hygienic environments. |
| Fully Transparent Structure Maintains a high-purity, transparent appearance. It allows the substrate's color to show through while providing ESD protection. | Super Anti-fouling Equipped with excellent stain resistance (EN423:2001 compliant). Dirt and chemical spills are easily wiped away without leaving marks. |
In today's technological environment, static discharge can destroy sensitive electronic components, ignite flammable gases, and cause equipment malfunctions. The Anti-static PVC Veneer from Huahong is the ultimate solution to these problems. It is widely used in precision instrument facilities, electronics, military industry, petrochemicals, cleanrooms, computer rooms, hospitals, telecommunications, and aerospace.
Why Choose Anti-static PVC Veneer?
High-purity, transparent ESD PVC veneer.
Comprehensive Technical Specifications
| Test Item | Standard | Result |
|---|---|---|
| Thickness | ISO24346-EN430 | 2.0 mm |
| Dimensions | ISO 24341-EN426 | 2m x 20m / 1.56m x 15m |
| Weight | ISO24341-EN426 | 3.1 kg/m² |
| System Resistance | DIN 51953 |
Dissipative: 1.0×10⁶~1.0×10⁹ Ω Conductive: 1.0×10⁴~1.0×10⁶ Ω |
| Static Decay Period | SJ/T10694-2006 | ≤ 0.4 s |
| Starting Voltage | SJ/T11236-2001 | |V| < 100V |
| Amount of Wear | SJ/T11236-2001 | ≤ 0.02 g/cm² |
| Combustion Property | GB8624-2006 | Bf1-S1, t1 FV-0 |
| Slip Resistance | DIN 51130 / EN13893 | R9 ≥ 0.3 |
| Antibacterial | ISO 22196 | Compliant |
| Formaldehyde Emission | EN717-1 | N, D (Zero) |
| Dimensional Stability | EN434 | ≤ 0.40% |
Integration & Related Solutions

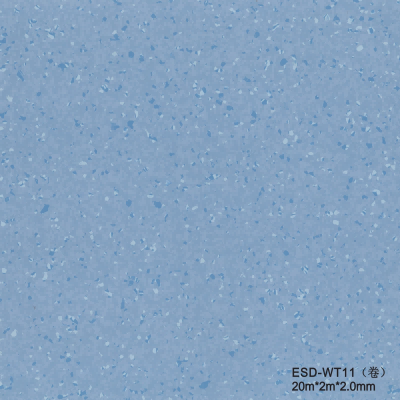

Our Anti-static PVC Veneer is the perfect finish for raised access floors. It works perfectly with our All Steel Anti-static Activity Floor or the high-precision Calcium Sulfate Anti-static Floor. If you need a carbon-free option to prevent dark smudges in light-colored cleanrooms, explore our Carbon-free anti-static Veneer. For heavy-duty cleanroom environments, the High Pressure Laminate Anti-static Tile Veneer is an excellent choice.
【Anti-static PVC Veneer】FAQ
|
Q: What makes this PVC veneer different from regular ESD rolls? A: This product utilizes nanoscale carbon-free conductive materials and a fully transparent structure. This means it delivers permanent ESD protection (10⁶-10⁹ Ω) while allowing the underlying floor color to show through. It also features super antibacterial and anti-fouling properties, making it ideal for hospitals and highly sterile cleanrooms. |
|
Q: How fast does this veneer dissipate static charge? A: It features a rapid static decay period of ≤0.4 seconds (compliant with SJ/T10694-2006). When a static charge is generated by foot traffic or equipment operation, it is immediately and safely conducted to the ground, preventing damage to sensitive electronics or the ignition of flammable materials. |
|
Q: Can this veneer be easily maintained? A: Yes. The super anti-fouling surface resists dirt and stains, making routine cleaning very simple. It has excellent resistance to staining (EN423:2001) and is easy to wipe clean. Applying an anti-static wax after cleaning will help maintain optimal performance and prolong the floor's lifespan. |
