Galvanized Steel Wall Panel for Data Center

The Galvanized Steel Wall Panel for Data Center from Huahong combines a durable galvanized steel outer layer with a 12mm fire-resistant gypsum core. This modular wall system provides exceptional fire protection, sound insulation, and a smooth, dust-free surface. Ideal for server rooms, control rooms, and 5A intelligent buildings. Available with optional ESD control and customizable steel thicknesses (0.5mm-0.8mm).

Send Inquiry

Rating: 5.0

(Rating Count: 1)

Product Description

Galvanized Steel Wall Panel for Data Center
Fireproof · Dust-proof · Sound Insulation · Modular

Fire Resistance & Safety The 12mm gypsum core and galvanized steel surface combine to resist burning and help slow fire spread. Non-combustible, with test reports available based on target market standards.	Sound Insulation The dense composite structure effectively reduces the noise generated by servers, cooling units, and other equipment, creating a quieter environment for your data center.
Dust & Moisture Protection The smooth polyester-coated surface resists dust accumulation and is easy to wipe clean. The galvanized steel outer layer ensures excellent moisture and corrosion resistance.	Optional ESD Control An anti-static surface option is available to further reduce static impact on sensitive electronic equipment, providing comprehensive protection for high-tech facilities.

Composite Structure & Modular Installation

The Galvanized Steel Wall Panel uses a dual-layer composite design: an outer layer of high-strength galvanized steel and an inner core of 12mm gypsum board. The steel provides structural stability, moisture resistance, and a sleek finish, while the gypsum provides fire protection and sound insulation.

The panels are installed using a light steel keel system and connected with pressure strips. This modular design means individual panels can be easily removed for future cabling or equipment adjustments, making maintenance and upgrades incredibly simple.

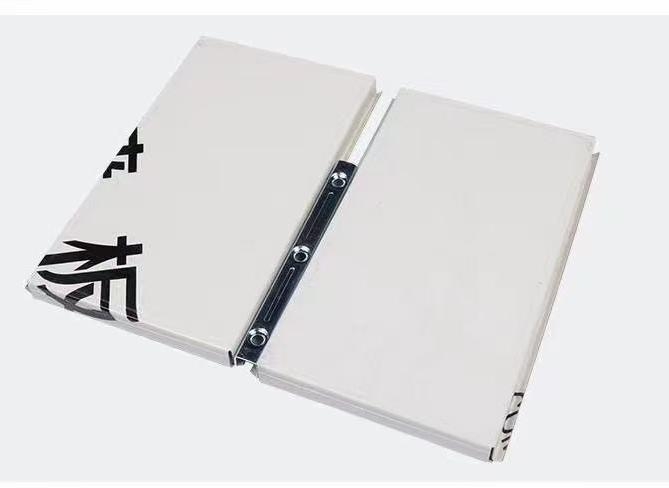

Galvanized steel and gypsum composite structure.

Technical Specifications

Parameter	Specification
Panel Material	Galvanized steel (outer) + 12mm gypsum board (core)
Steel Thickness	0.5 mm / 0.6 mm / 0.8 mm
Standard Width	1200 mm
Length	Customized per project
Surface Finish	Polyester coating (smooth, easy to clean)
ESD Control	Optional Anti-static surface
Installation	Light steel keel, modular, removable panels

Applications & Related Products

This wall panel system is specifically designed for data centers, server rooms, high-end intelligent office buildings, meeting rooms, and monitoring centers. For comprehensive data center construction, pair these walls with our All Steel Anti-static Activity Floor or the high-load Calcium Sulfate Anti-static Floor. For specific ESD requirements, explore our Anti-static HPL Raised Floor.

【Galvanized Steel Wall Panel for Data Center】FAQ

Q: What are the main benefits of using this composite wall panel in a data center?

A: The composite structure combines the strength, moisture resistance, and easy-to-clean surface of galvanized steel with the fire resistance and sound insulation of a 12mm gypsum core. This dual-layer design creates a safer, quieter, and more durable environment for critical IT equipment, while effectively resisting dust and fire.

Q: How does the modular installation work for future maintenance?

A: The panels are installed using a light steel keel system and pressure strips. This modular setup means that individual panels can be easily removed and reinstalled without damaging the surrounding structure. When you need to run new cables, upgrade equipment, or access the wall cavity, the process is quick and hassle-free, minimizing downtime in the data center.

Q: Can these wall panels provide ESD protection for sensitive electronics?

A: Yes, we offer an optional anti-static (ESD) surface treatment. While the galvanized steel already offers a degree of conductivity, the optional ESD coating can further reduce static buildup and safely dissipate charges. This provides comprehensive protection for sensitive electronic components and complements your anti-static flooring system.
