Huahong Anti-static HPL Raised Floor: Why the Hardcore ESD Solution Top Choice for Data Centers
In precision environments such as data centers, electronic workshops, and cleanrooms, anti-static (ESD) flooring is more than just infrastructure – it is the foundation of safety and reliability. Among the many options available, Anti-static HPL Raised Floor stands out as the most widely used type, thanks to its “steel outside, solid inside” construction and high cost-performance ratio. Let’s take a closer look at what makes it the industry benchmark.
1. What Is Anti-static HPL Raised Floor?
HPL stands for High Pressure Laminate – a high-strength decorative material made by fusing multiple layers of resin-impregnated kraft paper and decorative paper under high heat and pressure.
Anti-static HPL Raised Floor perfectly combines this premium laminate surface with a hardened SPCC cold-rolled steel substrate:
Top layer: Highly wear‑resistant HPL, offering scratch resistance, stain resistance, and glare‑free visual comfort.
Core structure: Deep‑drawn SPCC steel panels, filled with lightweight cement or honeycomb supports for exceptional load‑bearing capacity and dimensional stability.
Steel outside, solid inside and it delivers the rigidity and fire resistance of steel, along with the aesthetic and functional benefits of HPL, making it the ideal ESD flooring solution.
2. Eight Key Advantages That Set the Standard
The popularity of all‑steel HPL flooring stems from its well‑balanced performance across multiple dimensions:
➤ Wear‑resistant & stain‑free: High‑grade HPL surface resists scratches and stains; easy to clean, with no liquid penetration.
➤ Quick assembly & disassembly: Modular design with high precision; fast installation and extremely low maintenance costs for later access.
➤ Strong compatibility: Suitable for underfloor cabling, air conditioning plenums, equipment mounting, and various raised‑floor applications.
➤ Glare‑reducing & eye‑friendly: Matte finish minimises glare, reducing visual fatigue during long working hours.
➤ Energy‑efficient: The raised cavity acts as a static pressure plenum, optimising airflow and reducing HVAC energy consumption.
➤ Neat & attractive appearance: Uniform surface finish and modern look enhance the overall spatial quality.
➤ Excellent value for money: Balanced performance, long service life, and low total cost of ownership (procurement + maintenance).
➤ Wide adaptability: Different grades available to meet load requirements from A‑level to B‑level computer rooms.
➤ Easy maintenance: Individual panels can be replaced independently without dismantling the entire floor, greatly simplifying upkeep.

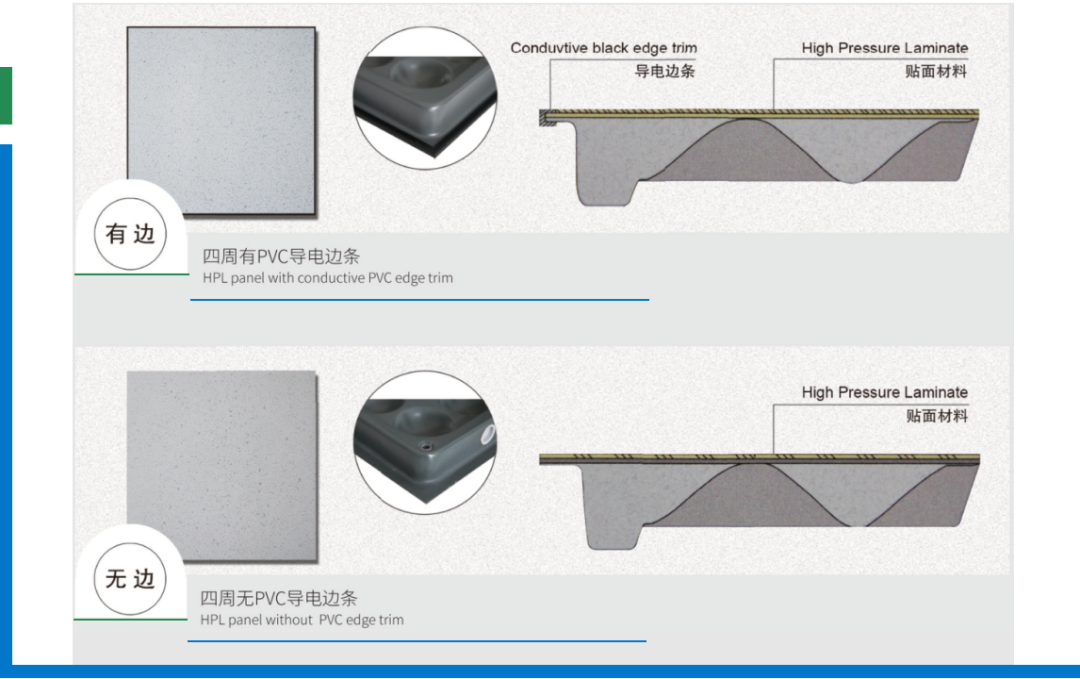

3. Flexible Options: Edged vs. Edgeless – Choose What Suits You
To accommodate different design preferences and functional needs, all‑steel HPL flooring is available in two edge finishes:
Edged (with conductive PVC edge banding): The perimeter is wrapped with a conductive PVC strip, providing a seamless look and more stable electrostatic discharge performance – ideal for high‑grade cleanrooms.
Edgeless (no edge banding): The laminate fully covers the steel surface, giving a sleek, minimalist appearance – perfect for modern open‑plan offices or showpiece server rooms.
Both versions meet anti‑static standards, allowing you to choose based on budget and aesthetic requirements.
4. Dual Protection: ESD + Fire Resistance – Double the Safety
Safety is paramount in any mission‑critical facility. All‑steel HPL flooring excels in both areas:
Anti‑static (ESD): The conductive layer within the HPL laminate, combined with the steel substrate and a proper grounding system, provides a reliable path for electrostatic discharge – preventing equipment malfunctions or data loss caused by static buildup.
Fire‑resistant: The HPL surface achieves a B1‑grade (difficult‑to‑ignite) rating. Even when exposed to an open flame, it only chars and does not spread fire. Together with the non‑combustible steel base, it forms a solid firewall for your computer room.
This dual layer of protection gives peace of mind to both facility managers and IT operators.
5. Modular Design: Quick Installation, Extremely Low Maintenance
Adopting a modular design with extremely high dimensional accuracy, every panel is manufactured to standardized specifications with minimal geometric tolerances, ensuring a flat and tightly fitted floor after installation.

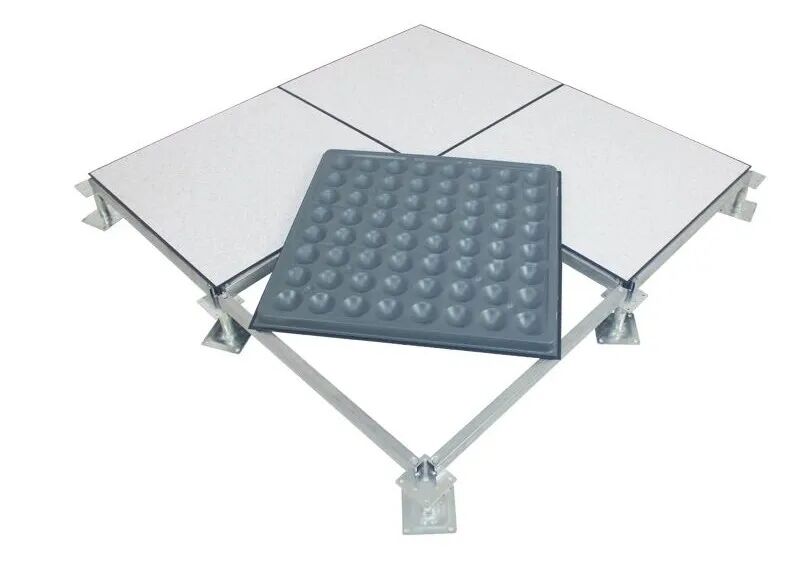

Quick and simple installation: No complex tools are required. The pedestal and stringer system can be rapidly assembled, and panels are snapped into place one by one, significantly shortening the construction period and saving labor costs.

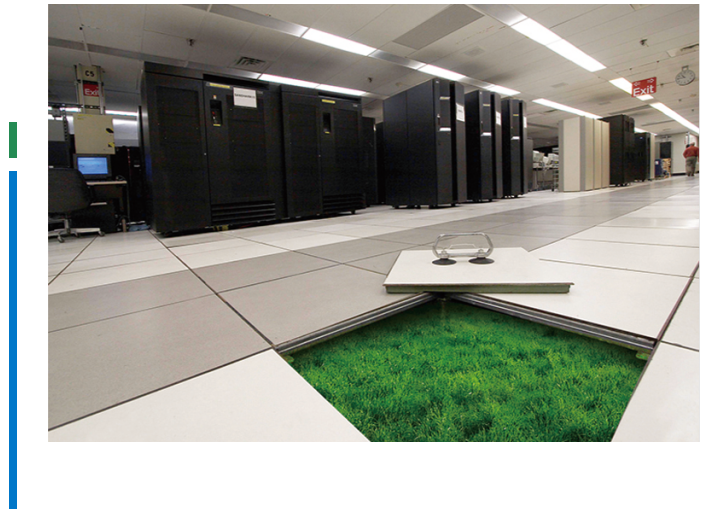

Extremely low post‑installation maintenance costs: Any individual panel can be lifted or replaced independently without the need for large‑scale dismantling. This makes cable repairs, pipe maintenance, and equipment retrofitting easy and effortless, markedly improving operational efficiency.
This modular structure makes all‑steel HPL flooring not only "built right the first time" but also "easy to maintain for the long haul."
6. Unbeatable Cost‑Performance: The “Game‑Changer” in the Market
While delivering top‑tier performance, all‑steel HPL flooring benefits from mature manufacturing processes and economies of scale, keeping production costs highly competitive. Compared to ceramic‑faced or calcium‑sulphate alternatives with similar performance, it offers a clear price advantage – yet its lifespan and maintenance costs are fully comparable. This is the “value‑for‑money champion” that has disrupted the market.
7. Important Usage Note: Control Temperature & Humidity for Longevity
Despite its rugged performance, the HPL laminate is a composite material that responds to environmental conditions. To minimise the risk of cracking or delamination and to maximise service life, we recommend the following operating environment:
| Model | FS700 | FS800 | FS1000 | FS1250 | FS1500 | FS2000 |
|---|---|---|---|---|---|---|
| Type | ||||||
| Size (mm) | 600×600×35 | 600×600×35 | 600×600×35 | 60×600×35 | 600×600×35 | 600×600×35 |
| Concentrated Load (kg) | ≥2950 | 3550 | 4450 | 5560 | 6665 | 8908 |
| Concentrated Load (N) | 300 | 363 | 454 | 567 | 680 | 909 |
| Rolling Load (N) | 2255 | 2950 | 3560 | 4450 | 5560 | 7790 |
| Ultimate Load (N) | 8850 | 10650 | 13350 | 16680 | 19995 | 26724 |
| Uniform Load (N/m²) | 12500 | 16500 | 23000 | 33000 | 39324 | 52557 |
| Fire Performance | ASTM E84‑01: Flame Spread 0, Smoke Density 0, Class A non‑combustible | |||||
| System Resistance | 10⁶ – 10⁹ Ω (electrostatic dissipative) | |||||
| Note | Data based on standards and internal inspections; actual order prevails. | |||||
Relative humidity: 45% – 75%
Ambient temperature: 15°C – 35°C
If conditions fall outside this range, please use precision air conditioning in the server room to maintain stability – ensuring the flooring performs reliably for years to come.
Conclusion:
In summary, Anti-static HPL Raised Floor has become the default choice for data centres, telecom rooms, clean workshops, and other sensitive facilities, thanks to its **wear resistance, fire safety, ESD protection, easy maintenance, and excellent cost‑effectiveness. As a representative brand in the sector, **Ouli Anti‑Static Access Flooring** continues to lead the industry with superior product performance and comprehensive service support.
Choosing Huahong Anti-static HPL Raised Floor means choosing not just a floor – but a long‑term guarantee of safety, efficiency, and peace of mind.
