Aluminum Solid Panel

Standard raised floors fail in harsh conditions. Steel corrodes. Cement cores crack. Coatings wear off. The Aluminum Solid Panel from Huahong Floor solves these problems. Made from high-purity aluminum alloy through one-piece die-casting, this solid-core floor delivers exceptional strength, permanent anti-static properties, and complete corrosion resistance. Designed for shipboard server rooms, military control centers, cleanroom labs, and heavy equipment facilities.

What Is an Aluminum Solid Panel?

An Aluminum Solid Panel is a raised access floor panel made entirely from high-grade aluminum alloy through one-piece die-casting. Unlike hollow or cement-filled panels, this is a solid, dense structure with no cavities, no fillers, and no coatings to wear off. The result is a lightweight yet extremely strong panel that resists corrosion, heat, and deformation.

Product Definition & Core Functions

- Definition: A solid, one-piece die-cast aluminum alloy raised floor panel

- Primary Function: Provide heavy-load bearing, anti-static raised flooring for extreme environments

- Additional Functions: Cable management, equipment support, anti-static protection

Panel Construction

Component	Material	Feature
Core	High-purity aluminum alloy	Solid, no voids, one-piece die-cast
Surface	Natural aluminum or anti-static coating	Permanent static control, no coating required
Edge	Precision machined	Clean, uniform, no separate edge banding
Support	Adjustable pedestals	Standard 600×600mm grid compatibility

Manufacturing Process

- Material: High-purity aluminum alloy billet

- Forming: One-piece die-casting – no welding, no assembly

- Density: Fully solid – no porosity, no air pockets

- Surface: Precision machined for flatness

- Finish: Natural aluminum (no coating needed) or optional anti-static treatment

Dual Brand Quality Control

Both Huahong and Ouli brands follow strict production standards. Every panel undergoes density verification, flatness inspection, load testing, and corrosion resistance validation before packing.

Technical Specifications

Basic Parameters

Parameter	Specification
Product Name	Aluminum Solid Panel
Material	High-purity aluminum alloy
Forming method	One-piece die-casting
Structure	Solid – no cavities, no fillers
Panel size	600 × 600 mm (standard)
Panel thickness	35 mm (customizable)
Surface finish	Natural aluminum or anti-static coating
Weight	Lighter than steel (specific value by model)

Load Capacity Options

Model	Concentrated Load	Uniform Load	Best For
FS1500	680 KG	33.34 KN/m²	Standard heavy-duty
FS2000	907 KG	44.45 KN/m²	Extra heavy equipment
FS2500	1134 KG	57.79 KN/m²	Ultra-heavy industrial
Custom	Up to 1500+ KG	As required	Special applications

Physical & Mechanical Properties

Property	Performance
Density	Fully solid – no porosity
Tensile strength	High (aluminum alloy grade dependent)
Hardness	Excellent – resists dents and deformation
Flatness	Superior – precision machined surface
Dimensional stability	Excellent – minimal thermal expansion
Weight	Approximately 1/3 of steel (same thickness)

Environmental & Chemical Properties

Property	Performance	Benefit
Corrosion resistance	Excellent (natural oxide layer)	No rust, no coatings needed
Anti-static	Permanent (aluminum is conductive)	No coating to wear off
Fire resistance	Class A (non-combustible)	Safe for all building codes
Heat resistance	Excellent	No deformation at high temperature
Chemical resistance	Good (resists most chemicals)	Suitable for labs, cleanrooms
UV resistance	Excellent	No degradation from light exposure
Service life	30+ years (virtually maintenance-free)	Lowest life-cycle cost

Key Physical Comparisons

Feature	Aluminum Solid Panel	Steel Cementitious Panel	Wood-Core Panel
Structure	Solid, one-piece	Steel shell + cement fill	Wood + laminate
Weight	Light	Heavy	Medium
Corrosion resistance	Excellent	Coating dependent	Poor
Anti-static	Permanent (metal)	Coating dependent	Coating dependent
Thermal expansion	Low	Moderate	High
Service life	30+ years	10-15 years	5-10 years

Core Advantages of Aluminum Solid Panel

1. One-Piece Solid Structure – No Weak Points

- Die-cast as a single piece – no welds, no seams, no fillers

- Fully solid – no hollow cavities to dent or collapse

- Uniform density throughout – no weak spots

- Withstands point loads without deformation

2. Extremely High Load Capacity

- FS2500 model: 1134 KG concentrated load

- Custom models available up to 1500+ KG

- Perfect for heavy UPS systems, mainframes, industrial equipment

- No sagging or creep under permanent heavy loads

3. Lightweight – Easy to Install

- Approximately 1/3 the weight of steel panels (same thickness)

- Reduces worker fatigue during installation

- Easier to handle in confined spaces (shipboard, elevated floors)

- Lower shipping costs

4. Permanent Anti-Static – No Coating Needed

- Aluminum is naturally conductive

- No anti-static coating to wear off or reapply

- Surface resistivity remains constant for life

- Safe for sensitive electronics forever

5. Complete Corrosion Resistance – Never Rusts

- Aluminum forms protective oxide layer naturally

- No paint, no plating, no sacrificial coatings needed

- Resists salt spray, humidity, chemicals

- Ideal for shipboard, coastal, and industrial environments

6. Fire and Heat Resistant

- Class A non-combustible – aluminum will not burn

- No smoke or toxic fumes in fire

- Maintains strength at elevated temperatures

- No deformation under heat stress

7. Dimensionally Stable – No Warping

- Low coefficient of thermal expansion

- No moisture absorption – no swelling

- No creep under load – no gradual sagging

- Flatness maintained for decades

8. Extremely Low Maintenance

- No painting, no coating renewal

- No rust removal, no sealing

- Simple cleaning with damp cloth

- Basic免维护 – install and forget

9. Customizable – Harsh Environment Ready

- Custom sizes, thicknesses, load ratings available

- Optional anti-static surface treatments

- Can be machined for special cutouts or fittings

- Suitable for extreme temperatures, salt spray, chemical exposure

Applications for Aluminum Solid Panel

Primary Applications

- Data centers – Heavy server racks, high-density cooling

- Shipboard server rooms – Salt spray, vibration, humidity

- Military control rooms – Reliability, durability, no maintenance

- Cleanroom laboratories – No particle shedding, easy to clean

- Semiconductor manufacturing – Anti-static, chemical resistant

- Heavy equipment rooms – UPS, batteries, mainframes

- Command and control centers – Long-term reliability

- Special industrial environments – High heat, corrosive, or wash-down areas

Who Needs This Product?

Role	Why They Need Aluminum Solid Panel
Data center engineer	Heavy load capacity, permanent anti-static
Naval facility manager	Corrosion resistance in saltwater environment
Military specifier	Extreme reliability, no maintenance
Cleanroom manager	No particle shedding, easy to sanitize
Industrial plant engineer	Heat resistance, chemical resistance
Government project manager	30+ year service life, lowest life-cycle cost

Perfect For Extreme Environments

Environment	Why Aluminum Excels
Marine / shipboard	Never rusts – salt spray has no effect
High humidity	No moisture absorption, no swelling
High temperature	Maintains strength, no deformation
Chemical exposure	Resists most industrial chemicals
Cleanroom	No coatings to flake, solid surface
Heavy load	Solid structure withstands point loads

FAQ

Q1: Does the Aluminum Solid Panel meet national and industry standards?

Answer: Yes. The Aluminum Solid Panel from Huahong Floor strictly complies with GB/T 36340-2018 (raised access floors) and SJ/T 10796-2001 (anti-static floors). The aluminum alloy material meets applicable ASTM and EN standards for structural aluminum. Load testing is performed per batch to verify concentrated and uniform load ratings. Anti-static properties are inherent to the aluminum material – no coating required – and maintain surface resistivity within 1×10⁶–1×10⁹ Ω. Fire rating is Class A non-combustible. For international projects, Huahong can provide compliance documentation for ISO, ASTM, EN, or military specifications upon request. Custom testing can be arranged for specialized applications such as shipboard or military use.

Q2: Is the Aluminum Solid Panel suitable for heavy-load equipment rooms?

Answer: Absolutely. The Aluminum Solid Panel is specifically designed for heavy-load environments. Standard models include FS1500 (680 KG concentrated), FS2000 (907 KG), and FS2500 (1134 KG). For specialized applications, custom panels can be manufactured with concentrated loads exceeding 1500 KG. The solid, one-piece die-cast structure distributes point loads evenly without the risk of core crushing or shell deformation common in cement-filled or wood-core panels. This makes it ideal for UPS battery rooms, mainframe computer floors, heavy industrial control rooms, and any facility with large, heavy equipment. Unlike steel panels that may rust over time, the aluminum solid panel maintains full load capacity for decades without corrosion-related degradation.

Q3: Does the anti-static performance decay over time?

Answer: No. The Aluminum Solid Panel provides permanent anti-static performance because the aluminum material itself is naturally conductive. Many raised floors rely on surface coatings (paints, laminates, or waxes) to achieve anti-static properties. These coatings wear off in 1-5 years, requiring expensive respraying or replacement. The aluminum solid panel requires no coating – the anti-static property is inherent to the material. Surface resistivity remains constant throughout the 30+ year service life. Even if the panel surface gets scratched or abraded, the exposed aluminum remains anti-static. For environments where static protection is critical (semiconductor fabs, cleanrooms, military electronics), this permanent performance eliminates the risk of coating failure and reduces long-term maintenance costs.

Q4: How does the Aluminum Solid Panel resist corrosion? Do I need to paint or seal it?

Answer: The Aluminum Solid Panel resists corrosion naturally. Aluminum forms a thin, transparent oxide layer when exposed to air. This layer is hard, non-porous, and self-healing – if scratched, the oxide immediately reforms. No painting, plating, or sealing is required, even in harsh environments. For shipboard applications (salt spray), coastal data centers, or chemical plants, the aluminum solid panel outperforms steel panels that require expensive, failure-prone coating systems. Steel panels eventually rust at scratches, cut edges, or fastener points. Aluminum does not. For extreme chemical exposure, anodizing can be added for additional protection. For 99% of applications, the natural aluminum surface is sufficient. No maintenance, no repainting, no rust removal – ever.

Q5: Is the Aluminum Solid Panel heavier than steel? Will installation be difficult?

Answer: No – the Aluminum Solid Panel is actually lighter than steel. Aluminum has approximately 1/3 the density of steel. For panels of the same size and thickness, aluminum weighs about 1/3 as much as steel. This makes installation easier and safer – workers can handle panels with less fatigue, and there is lower risk of dropping injuries. For shipboard installations where weight is critical, aluminum panels significantly reduce topside weight. For raised floors with access requirements, lighter panels are easier to lift and reposition during cable changes. The combination of light weight and high strength is one of the key advantages of aluminum over steel for access flooring applications.

Q6: What is the service life of the Aluminum Solid Panel? Does it require regular maintenance?

Answer: The Aluminum Solid Panel has a service life of 30+ years under normal use, and many installations last 50 years or more. This is significantly longer than steel panels (10-15 years) or wood-core panels (5-10 years). Maintenance requirements are minimal – essentially  (maintenance-free) . Here is what is needed: Regular cleaning – wipe with damp cloth as needed for appearance. No painting, no coating renewal, no rust removal, no sealing, no anti-static respraying. The natural aluminum oxide layer protects continuously. For anti-static verification, periodic testing (every 2-3 years) is recommended for documentation purposes, but the material properties do not change. For extreme environments, occasional inspection of edge conditions is advised. Overall, the aluminum solid panel has the lowest life-cycle cost of any raised floor type.

Q7: Does Huahong Floor provide customization and after-sales support for Aluminum Solid Panels?

Answer: Yes. Huahong Floor provides comprehensive support for the Aluminum Solid Panel. Customization options include: panel sizes beyond 600×600mm, thickness variations from 35mm to 50mm+, concentrated load ratings up to 1500+ KG, special cutouts or edge profiles, and anodized or specialty surface finishes. Installation services include: on-site measurement, system design, professional installation by trained crews (available in many regions), and post-installation load verification. Warranty : 5-year structural warranty covering material defects, load performance, and dimensional stability. Actual service life extends far beyond warranty period. After-sales support : technical documentation, remote troubleshooting, replacement panels for verified defects, and optional on-site inspection for large or mission-critical projects. Contact Huahong with your specific requirements for a customized proposal.

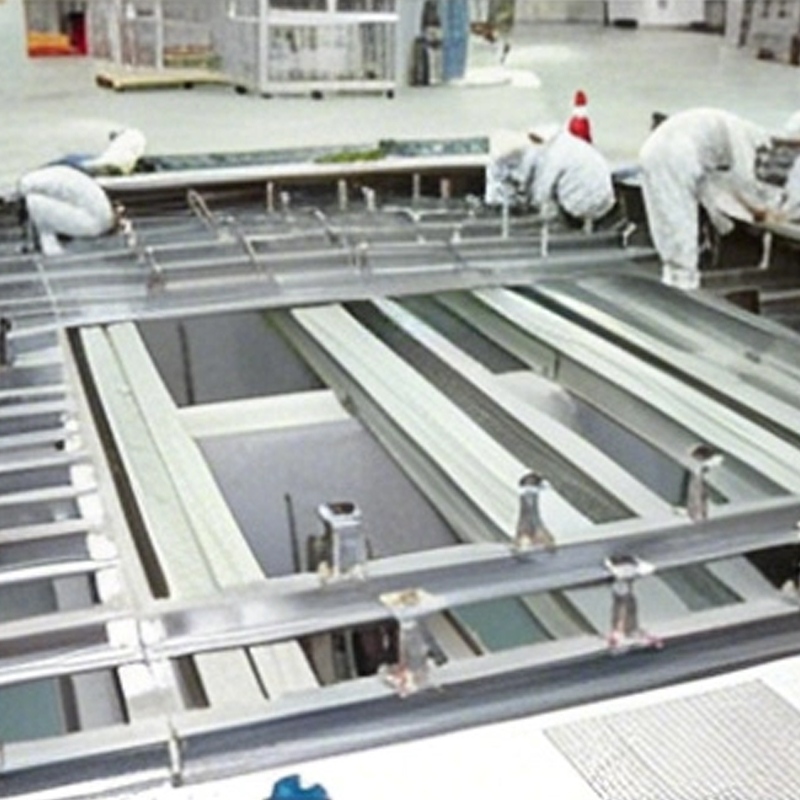

Installation Overview

Standard Installation Steps

1. Clean and prepare the subfloor

2. Mark pedestal positions on 600×600mm grid

3. Install adjustable pedestals (corrosion-resistant finish recommended)

4. Install stringers for lateral stability if required

5. Begin panel placement from a reference corner

6. Check flatness with 2m level – aluminum panels maintain tight tolerance

7. Install edge trim and access ramps

Tools Required

- Laser level or rotating laser

- Suction cup panel lifter (standard)

- Rubber mallet

- Torque wrench

- Multimeter for grounding test

Special Notes for Aluminum

- Aluminum is softer than steel – avoid hard object impacts

- Use plastic or wood surfaces for temporary storage to prevent scratching

- For cleanroom use, specify protective film during installation

- Aluminum conducts heat and electricity – standard grounding applies

Maintenance Guidelines

Routine Care

- Dry mop or vacuum to remove abrasive dust

- Damp mop with mild soap and water as needed

- No wax, no polish, no anti-static sprays – not needed

- For high-gloss finish, buff with soft cloth

Periodic Inspection (Every 2-3 Years)

- Inspect for any physical damage (unlikely with solid aluminum)

- Verify pedestal stability

- Test ground continuity if anti-static system used

Panel Replacement (Rarely Needed)

- Lift panel with suction cup

- Lower new panel into same opening

- No tools required

Comparison – Aluminum Solid vs. Other Panel Types

Feature	Aluminum Solid Panel	Steel Cementitious	Wood-Core	HPL-Steel
Structure	Solid, one-piece	Shell + cement	Wood + laminate	Steel + cement
Weight	Light	Heavy	Medium	Heavy
Load capacity	Ultra-high (to 1134+ KG)	High (to 1134 KG)	Low-medium	High
Corrosion resistance	Excellent (none needed)	Coating dependent	Poor	Coating dependent
Anti-static	Permanent (inherent)	Coating dependent	Coating dependent	Coating dependent
Moisture resistance	Excellent	Good	Poor	Good
Fire rating	Class A	Class A	Class B	Class A
Service life	30+ years	10-15 years	5-10 years	10-15 years
Maintenance	None	Low (coating check)	High	Low
Best for	Extreme, heavy, marine, military	General data centers	Budget office	General use

Why Choose Huahong Floor Aluminum Solid Panels

Manufacturing Excellence

- Material: High-purity aluminum alloy billet

- Forming: Precision one-piece die-casting – no voids, no porosity

- Quality: Fully solid, uniform density throughout

- Surface: Precision machined for flatness

- Control: Huahong and Ouli dual brand standards

Performance Guarantees

- Load capacity: FS1500 to FS2500+, custom available

- Flatness: Superior to all other panel types

- Corrosion resistance: No rust, ever

- Anti-static: Permanent – no coating

- Service life: 30+ years minimum

One-Stop Service

- Custom design for extreme environments

- Load rating selection guidance

- Material supply with delivery

- Professional installation (optional)

- 5-year warranty and long-term support

Summary

The Aluminum Solid Panel from Huahong Floor is the ultimate choice for heavy-duty, harsh environment, and mission-critical applications. One-piece die-cast solid aluminum construction delivers ultra-high load capacity (1134+ KG), permanent anti-static performance (no coating), complete corrosion resistance (never rusts), and 30+ year service life with no maintenance. Lightweight for easy installation. Class A fire rated. Ideal for shipboard server rooms, military control centers, semiconductor cleanrooms, heavy equipment rooms, and any facility where failure is not an option.

Choose Aluminum Solid Panel for strength that lasts – no rust, no decay, no compromise.
