Why is the ceramic-faced anti-static raised floor ideal for key projects like Shenzhen Bao'an Airport?
(Shenzhen Bao'an International Airport, Completed Area: 2,600 ㎡)

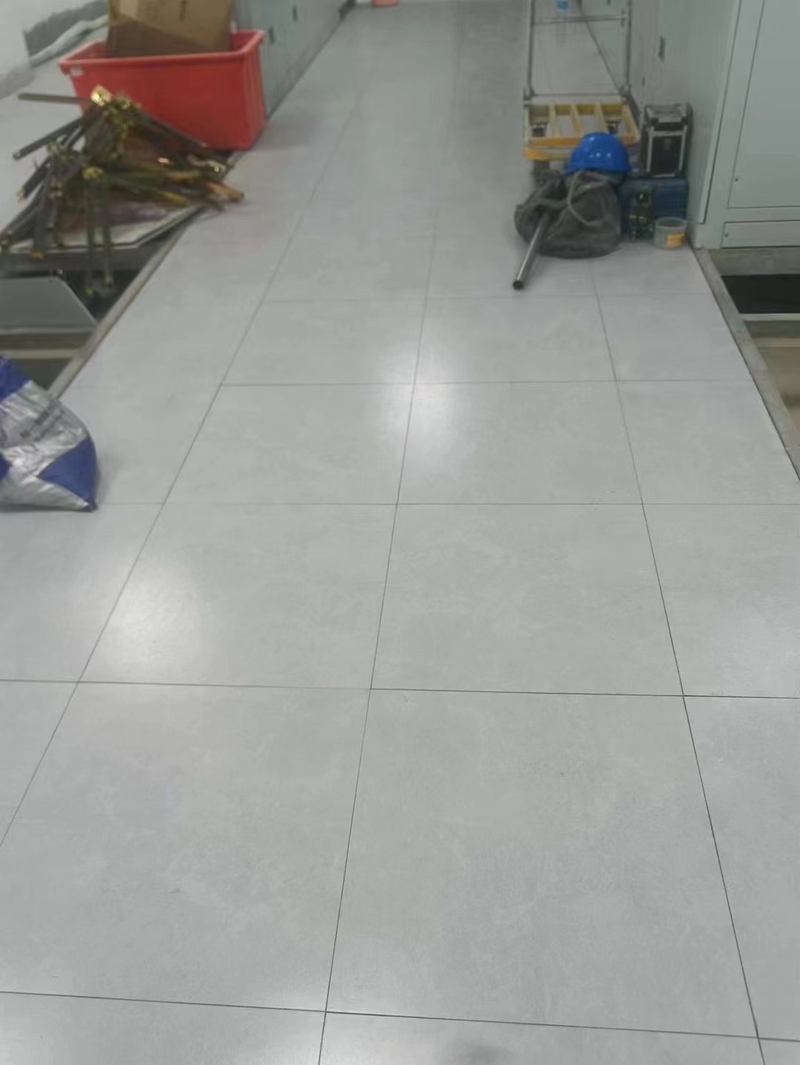

Ceramic-faced Anti-static Raised Floor
Product Overview
The all-steel raised anti-static floor is made of high-quality alloy cold-rolled steel plates from Baoshan Iron & Steel Group (Shanghai), formed by stretching and spot welding. Its surface undergoes phosphatization and plastic spraying; the inner cavity is filled with foamed cement, the upper surface is bonded with high wear-resistant anti-static ceramic veneer, and conductive edge strips are inlaid around the perimeter.
System Assembly
The system consists of floors, beams and supports. Beams and height-adjustable supports are connected by screws to form a stable lower support system, and the floors are inlaid in the grids enclosed by beams.
Technical Parameters
| Model | Specifications (mm) | Concentrated Load (N) | Concentrated Load (KG) | Impact Load (N) | Ultimate Load (N) | Uniformly Distributed Load (N/m²) |
|---|---|---|---|---|---|---|
| HDG600.35.CQ | 600×600×35 | ≥1960 | ≥200 | ≥670 | ≥5880 | ≥9720 |
| HDG600.35.Q | 600×600×35 | ≥2950 | ≥301 | ≥670 | ≥8850 | ≥12500 |
| HDG600.35.P.D | 600×600×35 | ≥3596 | ≥366 | ≥670 | ≥10799 | ≥16000 |
Application Scope

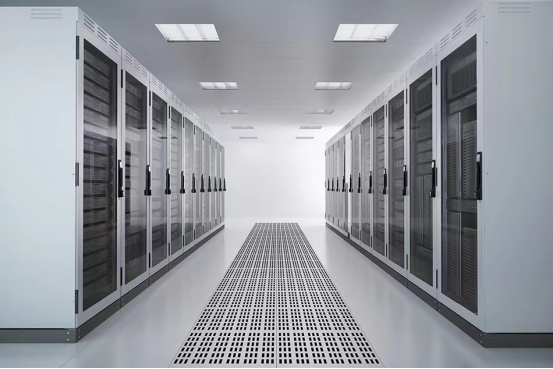

This floor is widely applied in occasions requiring anti-static protection, including computer rooms, satellite ground station rooms, radio control rooms, TV transmitting station control rooms, microwave communication station rooms, program-controlled exchange rooms, clean workshops, assembly workshops of electronic instrument factories, manufacturing workshops of confidential optical instruments, hospitals and schools.
