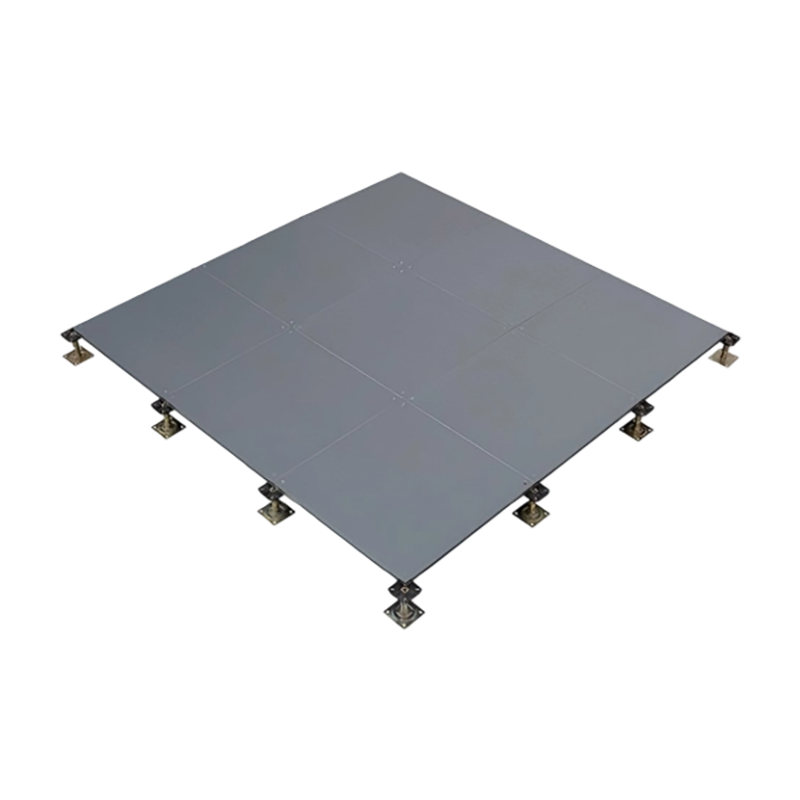

Encapsulated Calcium Sulphate Raised Access Flooring

Encapsulated Calcium Sulphate Raised Access Flooring | Six-Sided Sealed for High-End Data Centers

Premium data centers, financial trading floors, and cleanroom laboratories demand flooring that resists moisture, provides Class A fire protection, and maintains perfect flatness for decades. The Encapsulated Calcium Sulphate Raised Access Flooring from Huahong Floor delivers exactly that. Featuring a six-sided fully encapsulated high-density calcium sulphate core, this raised floor system offers superior moisture resistance, dimensional stability, and permanent anti-static protection.

What Is Encapsulated Calcium Sulphate Raised Access Flooring?

Encapsulated Calcium Sulphate Raised Access Flooring is a modular access floor panel with a high-density calcium sulphate core that is fully sealed on all six sides (top, bottom, and all four edges). This encapsulation process completely isolates the calcium sulphate core from the environment, preventing moisture absorption, edge swelling, and dimensional changes. The result is an extremely stable, fire-resistant, and durable raised floor for mission-critical environments.

Product Definition & Core Functions

- Definition: A modular raised floor panel with six-sided fully encapsulated calcium sulphate core

- Primary Function: Create a stable, moisture-resistant raised floor for high-end technical environments

- Additional Functions: Anti-static protection, cable management, equipment support, acoustic insulation

Panel Construction

Six-Sided Encapsulation Explained

Manufacturing Process

- Core forming: High-density calcium sulphate pressed to exact dimensions

- Edge sealing: All four edges fully encapsulated – no exposed core

- Top bonding: Anti-static HPL, PVC, or ceramic bonded under high pressure

- Bottom application: Galvanized steel or aluminum foil applied

- Curing: Controlled process ensures permanent bond

- Quality control: Huahong and Ouli dual brand standards

Technical Specifications

Basic Parameters

Load Capacity Options

Physical & Environmental Properties

Environmental Compliance

- Zero formaldehyde – Safe for occupied spaces

- Class A fire – Non-combustible, no toxic smoke

- Recyclable – Calcium sulphate can be recycled

- Low VOC emissions – Meets indoor air quality standards

Core Advantages of Encapsulated Calcium Sulphate Raised Access Flooring

1. Six-Sided Full Encapsulation – Moisture Proof

- All six faces sealed – no exposed core anywhere

- Prevents moisture absorption from humid air or spills

- No edge swelling, no warping, no dimensional change

- Superior to partially sealed or unsealed calcium sulphate floors

2. Class A Fire Rating – Non-Combustible

- Calcium sulphate core is naturally non-combustible

- No flame spread, no toxic smoke emission

- Meets strict fire codes for data centers and hospitals

- Safer than wood-core or some composite panels

3. Zero Formaldehyde – Environmentally Safe

- No urea-formaldehyde binders in core

- Safe for occupied spaces including hospitals and schools

- Meets stringent indoor air quality requirements

- Contributes to green building certifications

4. High Load Capacity – No Deflection

- FS800 to FS2000 models (454 KG to 907 KG concentrated load)

- High-density core resists creep and sagging

- Elastic deflection ≤ 2.0 mm under rated load

- Supports heavy server racks, UPS cabinets, trading floor equipment

5. Permanent Anti-Static Protection

- Anti-static HPL, PVC, or ceramic top layer

- Surface resistivity: 1×10⁶ – 1×10⁹ Ω

- No coatings to wear off – permanent performance

- Protects sensitive electronic equipment

6. Dimensionally Stable – No Warping

- High-density core does not expand or contract with humidity

- Six-sided seal locks in dimensions permanently

- Flatness maintained for decades

- Perfect for precision equipment alignment

7. Comfortable Underfoot

- Solid, dense feel – no hollow drumming sound

- Warmer than all-steel floors

- Reduces fatigue for standing workers

- Professional appearance for executive spaces

8. Customizable – Surface, Size, Load

- Top surface: HPL, PVC, or ceramic tile

- Panel size: Standard 600×600mm or custom dimensions

- Load rating: FS800 to FS2000+

- Edge finish: Fully encapsulated – no exposed core

9. Dual Brand Quality Control

- Huahong and Ouli brands – same strict standards

- Core density verified per batch

- Encapsulation integrity inspected

- Flatness tested before packing

- Load capacity validated

Applications for Encapsulated Calcium Sulphate Raised Access Flooring

Primary Applications

- Data centers and computer rooms – High-density racks, cooling aisles

- Financial trading floors – Heavy equipment, professional finish

- Command and control centers – Reliable, stable flooring

- Hospital operating rooms – Moisture-resistant, easy to clean

- Cleanroom laboratories – Zero formaldehyde, non-particulating

- Electronics manufacturing – Anti-static, dimensionally stable

- Aerospace control rooms – Mission-critical reliability

- High-end intelligent offices – Underfloor cabling, professional appearance

Who Needs This Product?

Comparison to Other Panel Types

【Encapsulated Calcium Sulphate Raised Access Flooring】 FAQ

Q1: What is six-sided full encapsulation and why does it matter?

Answer: Six-sided full encapsulation means every face of the calcium sulphate core is sealed. The top is sealed by the anti-static surface layer (HPL, PVC, or ceramic). The bottom is sealed by galvanized steel or aluminum foil. All four edges are sealed by encapsulation material – no calcium sulphate is exposed anywhere. This matters for three reasons. First, moisture protection – Unsealed or partially sealed calcium sulphate can absorb humidity from the air, causing edge swelling, warping, and dimensional change. Six-sided encapsulation completely prevents moisture ingress. Second, durability – Sealed edges resist damage from cleaning chemicals and spills. Third, cleanliness – No exposed core means no dust or particles. For high-end data centers, cleanrooms, and hospitals where moisture and contamination are concerns, six-sided encapsulation is essential.

Q2: Is Encapsulated Calcium Sulphate Raised Access Flooring fire-safe for data centers?

Answer: Yes. Encapsulated Calcium Sulphate Raised Access Flooring has a Class A fire rating – the highest classification for building materials. The calcium sulphate core is naturally non-combustible. It does not burn, does not contribute flame spread, and does not emit toxic smoke. This is critical for data centers, server rooms, and other occupied technical spaces where fire safety codes require non-combustible materials. Unlike wood-core panels that can burn and produce smoke, or some composite panels with organic binders, calcium sulphate is inherently fire-safe. The six-sided encapsulation does not affect fire rating – the core remains fully non-combustible. For facilities requiring strict fire compliance (NFPA, IBC, local codes), encapsulated calcium sulphate is an excellent choice.

Q3: Does the floor contain formaldehyde or other harmful emissions?

Answer: No. Encapsulated Calcium Sulphate Raised Access Flooring from Huahong Floor contains zero formaldehyde. The calcium sulphate core is made from natural gypsum and does not require urea-formaldehyde binders. The encapsulation materials and surface layers are also low-emission. This makes the floor safe for occupied spaces including hospitals, schools, laboratories, and office environments. For green building certifications such as LEED or BREEAM, the zero-formaldehyde composition contributes to indoor environmental quality credits. Huahong can provide test reports and compliance documentation. Compared to wood-core floors that may use formaldehyde-based adhesives, calcium sulphate is a significantly healthier choice for indoor air quality.

Q4: How does encapsulated calcium sulphate resist moisture and humidity compared to standard calcium sulphate?

Answer: Standard (partially sealed) calcium sulphate floors typically have exposed core material on edges or unsealed bottom surfaces. Over time, these exposed areas can absorb moisture from humid air, spills, or cleaning solutions. The result: edge swelling, surface warping, and loss of flatness. Encapsulated Calcium Sulphate Raised Access Flooring eliminates this risk through six-sided full sealing. The core never contacts ambient air. Even in high-humidity environments (coastal data centers, rooms with humidification systems) or areas prone to spills, the panel maintains its original dimensions. For facilities where moisture is a concern – such as hospital operating rooms (frequent cleaning), cleanrooms (humidity control), or data centers in humid climates – six-sided encapsulation is the superior choice.

Q5: What load capacity does Encapsulated Calcium Sulphate Raised Access Flooring provide? Is it enough for heavy server racks?

Answer: Encapsulated Calcium Sulphate Raised Access Flooring is available in multiple load models: FS800 (454 KG) – Standard server rooms. FS1250 (567 KG) – Medium density data centers. FS1500 (680 KG) – High-end data centers. FS2000 (907 KG) – Financial trading floors, heavy equipment. For most standard server racks with foot loads of 200-300 KG per foot, FS1250 or FS1500 models are sufficient. For heavy UPS cabinets or high-density storage arrays, select FS2000. The high-density calcium sulphate core resists creep and sagging – permanent deflection is negligible. Elastic deflection is ≤2.0 mm under rated load. The six-sided encapsulation does not reduce load capacity; the sealed edges are as strong as the core. Huahong can provide specific load recommendations based on your equipment specifications.

Q6: Can I customize the top surface, panel size, or load rating?

Answer: Yes. Huahong Floor offers extensive customization for Encapsulated Calcium Sulphate Raised Access Flooring. Top surface – Anti-static HPL (multiple colors), anti-static PVC, or ceramic tile. Panel size – Standard 600×600mm, or custom dimensions for non-standard grids. Panel thickness – 32mm to 35mm standard, custom thickness available. Load rating – FS800 to FS2000+ models. Edge finish – Fully encapsulated – no exposed core (standard). For large projects with specific requirements, Huahong can manufacture to your exact specifications. Provide project drawings or requirements for a customized quote. Customization lead times vary based on complexity and quantity.

Q7: What warranty and after-sales support does Huahong Floor provide?

Answer: Huahong Floor provides comprehensive support for Encapsulated Calcium Sulphate Raised Access Flooring. Warranty : Long-term structural warranty covering core integrity, encapsulation seal, load performance, and anti-static properties (1×10⁶–1×10⁹ Ω). Installation services : On-site measurement, system design, professional installation by trained crews (available in many regions), and post-installation flatness and grounding testing. After-sales support : Technical documentation (installation guides, load charts, grounding layouts), remote troubleshooting via call or email, replacement panels for verified defects, and optional on-site inspection for large projects. Response : Fast response for warranty claims and technical questions. Huahong's dual brand (Huahong and Ouli) support network ensures reliable service. Contact Huahong with project details for a customized support proposal.

Installation Overview

Standard Installation Steps

1. Clean and prepare the subfloor

2. Mark pedestal positions on 600×600mm grid

3. Install adjustable pedestals at design height

4. Install stringers for lateral stability (seismic zones)

5. Begin panel placement from a reference corner

6. Check flatness with 2m level – calcium sulphate requires tight tolerance

7. Install edge trim and access ramps

8. Verify grounding continuity

Tools Required

- Laser level or rotating laser

- Suction cup panel lifter

- Rubber mallet

- Torque wrench

- Multimeter for grounding test

Important Notes

- Encapsulated panels are heavier than hollow steel – use proper lifting technique

- Protect sealed edges during handling – encapsulation is durable but not indestructible

- Store panels flat on pallets, not on edge

Maintenance Guidelines

Daily Care

- Dry mop or vacuum to remove dust

- Damp mop with mild soap and water as needed

- No wax, no polish, no anti-static sprays – not needed

Periodic Checks (Every 6-12 Months)

- Test surface resistivity with megohmmeter

- Inspect encapsulation edges for any damage

- Verify pedestal stability

- Check ground continuity

Panel Replacement

- Lift damaged panel with suction cup

- Lower new panel into same opening

- No tools required

Comparison – Encapsulated vs. Standard Calcium Sulphate

Why Choose Huahong Floor Encapsulated Calcium Sulphate Flooring

Manufacturing Excellence

- Core: High-density calcium sulphate – zero formaldehyde

- Encapsulation: Six-sided fully wrapped – no exposed core anywhere

- Top surface: Anti-static HPL, PVC, or ceramic – permanent performance

- Bottom surface: Galvanized steel or aluminum foil – flat, stable

- Control: Huahong and Ouli dual brand standards

Performance Guarantees

- Fire rating: Class A non-combustible

- Moisture resistance: Six-sided seal – no swelling

- Formaldehyde: Zero – safe for occupied spaces

- Load capacity: FS800 to FS2000+ models

- Anti-static: 1×10⁶ – 1×10⁹ Ω, permanent

- Service life: 25+ years

One-Stop Service

- Site measurement and load analysis

- System design and pedestal layout

- Material supply with delivery coordination

- Professional installation (optional)

- Post-installation testing and documentation

- Long-term warranty and technical support

Solutions to Common Customer Concerns

Summary

The Encapsulated Calcium Sulphate Raised Access Flooring from Huahong Floor is the premium choice for high-end data centers, financial trading floors, hospitals, and cleanrooms. Six-sided full encapsulation provides complete moisture protection – no edge swelling, no warping. Class A fire rating ensures safety. Zero formaldehyde protects indoor air quality. High load capacity (to 907 KG) supports heavy equipment. Permanent anti-static surface protects sensitive electronics. Comfortable underfoot with solid, quiet feel. Backed by long-term warranty, dual brand quality control (Huahong and Ouli), and full project support.

Choose Encapsulated Calcium Sulphate Raised Access Flooring for stability, safety, and lasting performance.
